New China Brand Mato Mato Mts102r Classical Total Station

Product Description

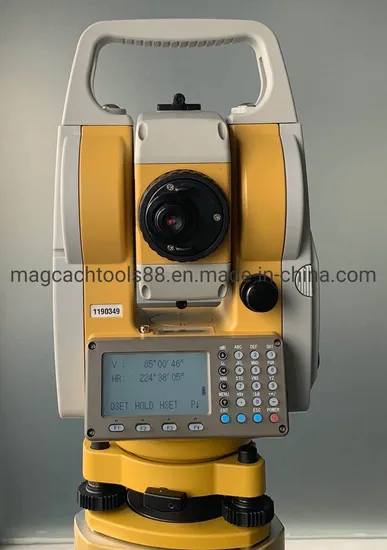

Mato MTS102R Reflectorless Total Station
MATO MTS100 Series Classical Total Station

1. The classic model of Sino-Japanese technical cooperation with an operating system that is completely
compatible with the TOPCONGTS102N
2. Additional features include a bluetooth communication system, prism-free ranging, laser alignment, and
other functions
3. Stable, high precision, simple operation.
4. One key for angle measurement / ranging / coordinate / lofting etc.
5. Those that are familiar with the TOPCONcomplete station should be able to use this model with
complete ease even without a manual guide

MTS100 Series One Key Survey Engineering Type Total Station
Main Technical Specification		MTS102R	MTS102R+	MTS102R8		MTS105R
Telescope	Magnification	30×
	Field angle	1°30′
	Image	Erect
Angle measurement	Minimum reading	1″	1″	1″	1″
	Accuracy	2″			5″
Distance measuring	Minimum reading	1 mm	1 mm	1 mm	1 mm
	Prism accuracy	±(2 mm+2 ppm·D)
	Reflector accuracy	±(2 mm+2 ppm·D)
	Non-Prism accuracy	±(5 mm+3 ppm·D)
	Single prism range	5000 m	7500 m	7500 m	5000 m
	Reflector range	800 m	1000 m	1000 m	800 m
	Non-Prism Range	400 m	600 m	800 m	400 m
Data management	Memory point	50,000 points
	SD card	Optional
	USB drive	Optional
	Bluetooth	Optional
Display	Dual 160×64pixel
Working temperature	- 20 oC - + 55 oC

---
