Kt Pneumatic High Speed Pipe Facing Machine

Product Description

Pipe & Flange ~ Cutting ~ Beveling ~ Facing ~ Drilling ~ Boring

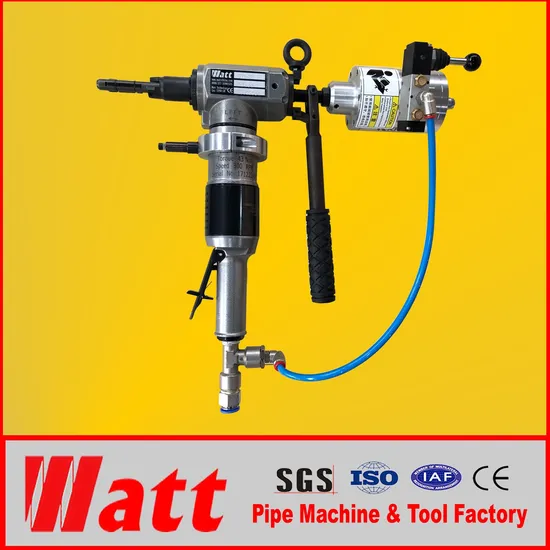

KT PNEUMATIC PIPE FACING MACHINE
OVERVIEW
KT pneumatic fast beveling machine is designed for bulk small dia. pipes. The machine works by the means of ID mounted, Pneumatic clamping and driving. Manual feeding and Auto feeding both are optional. The machine is used to solve to face, bevel and remove the ending of all welding pipes. With the feature of light weight, easy operation, high efficiency, the machine is widely used for many lines of bulk pipe facing and beveling, eg.heat exchanger, water wall,power plant,pharmacy,brewing, refrigeration and so on.
FEATURES
1.Cold cutting, without influence the material of the pipes
2.ID mounted, fasting positioning clamping
3.Manual and auto feeding is optional.
4.Fast feeding and retracting ensure few minutes to facing.
5.Remove extra length of the pipe and weld seam, fast face and bevel pipes
6.Working range: ID 12mm-40mm. Customized working range requirement is acceptable.
7.Applicable to end facing of various grades of metal pipes CS,SS and alloy steel
SPECIFICATION

Model	KT-24	KT-24A	KT-48	KT-48A
Feeding	Manual	Auto	Manual	Auto
Working range	Φ12.4-24mm	Φ12.4-24mm	Φ20-48mm	Φ20-48mm
Feeding stoke	20mm	20mm	20mm	20mm
Max thickness	5mm	5mm	5mm	5mm
No-load speed	300rpm	300rpm	300rpm	300rpm
Torque	50Nm	50Nm	50Nm	50Nm
Power	1.3HP	1.3HP	1.3HP	1.3HP
Air requirement	1500-2000L/min @0.63-0.8Mpa
Machine Max width	59mm	59mm	59mm	59mm
Weight	7KG	12KG	8KG	13KG

Above parameters just for reference only, not acceptance criteria

TOOLING
Other bevel angles and pipe material, please declare before order
Order Guide
Before you place order to us, please let us know the following information: Choose the right ModelConfirm the beveling angel required Confirm the welding joint required (U, V, Double V or Compound preparation) Advise your pipe material ( Carbon steel, stainless steel or others) Other special demands about machine The spare parts needed Method of operation:
1. Measure the size of the pipe to be machined, select the swelling block according to the swelling block diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.
2. According to the processing requirements, select the tool table in the appropriate angle of the tool, installed in the machine cutter, tighten the bolt, fixed tool.
3. Rotate the feed hand wheel to extend the feed spindle.
4. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left enough feed space.
5. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.
6. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.
7. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the machine from the tube.

---
