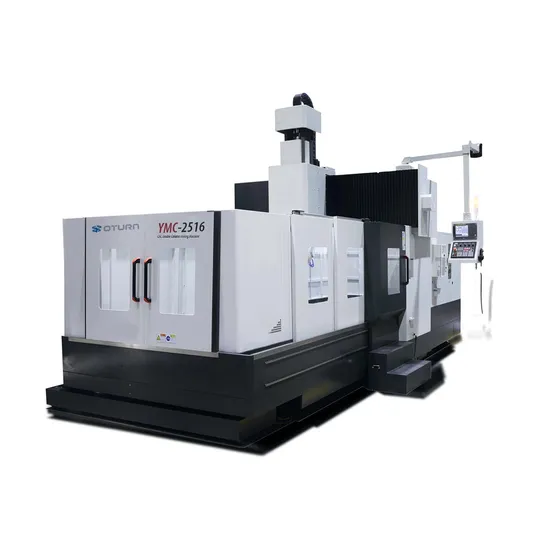

Oturncnc High Precision Vmc 3/5 Axis CNC Vertical Machining Center CNC Gantry Machining Center

Product Description

Product Description
Unmatched Rigidity and Long-Term Accuracy
The prime components of our Oturncnc High Precision Fanuc Controlled Vmc 3 Axis CNC Vertical Machining Center-such as the base, workbench, column, spindle box, and saddle-have undergone rigorous FEA finite element analysis. This meticulous analysis results in an optimized design with a lightweight yet high-rigidity mechanism. The proximity of the spindle center to the guide rail surface minimizes flipping torque, thereby enhancing processing stability. Manufactured using resin sand molding and high-strength, high-quality cast iron, our machine undergoes a comprehensive heat treatment process to eliminate residual stress. Additionally, the contact surfaces are precisely hand-scraped to ensure the optimal structural rigidity. Our diverse product line features a highly elastic automated exchange head library and a versatile vertical and horizontal tool-changing system, delivering automated, efficient, and high-productivity performance. The modular spindle design accommodates various cutting characteristics to meet diverse machining needs. The Y-axis features an ultra-high rigidity roller-type linear slide rail, combining the rigidity of the hard rail with the fast movement and low wear of the linear slide rail, thus significantly increasing both rigidity and control.
Our three-axis system employs internationally renowned brand roller guide rails, offering exceptional rigidity and dynamic accuracy. The transmission utilizes Taiwan-made, large-diameter ground ball screws, known for their compact structure, smooth operation, low thermal elongation, and high precision. This combination creates a stable, high-rigidity mechanical transmission system. The high-precision spindle provides constant and reliable lubrication to the spindle bearings, while the standard spindle oil cooling system maintains long-term stable working conditions.
Product Parameters

DESCRIPITION	UNIT	YMC-2516
Travel X/Y/Z	mm	2500/1600/720
Table Size	mm	2600×1480
Max.Table Load	kg	7000
Distance from Spindle Nose to Table	mm	200-920
Distance between Column	mm	1660
Spindle Tapper		BT50/φ190
Spindle RPM		6000
Spindle P.R	kw	15/18.5
G00 Feed Rate X/Y/Z	mm/min	15000/15000/ 10000
G01 Feed Rate	mm/min	1-8000
Machine Weight	kg	20000
Collant Tank Capicity	liter	500
Lubrication Tank	liter	4
Power Capicity	kVA	35
Air Pressure Request	kg/cm²	5-8
ATC Type		Arm type/Chain type
ATC Tapper		BT50
ATC Capicity		24(32)/40
Max.Tool dia./length	mm	125/400
Max.Tool Weight	kg	18
Machine size	mm	6900*3000*3400
Positioning accuracy	mm	0.008/300
Repeatability	mm	0.005/300
Min. tool change time	s	2.9

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ

---
