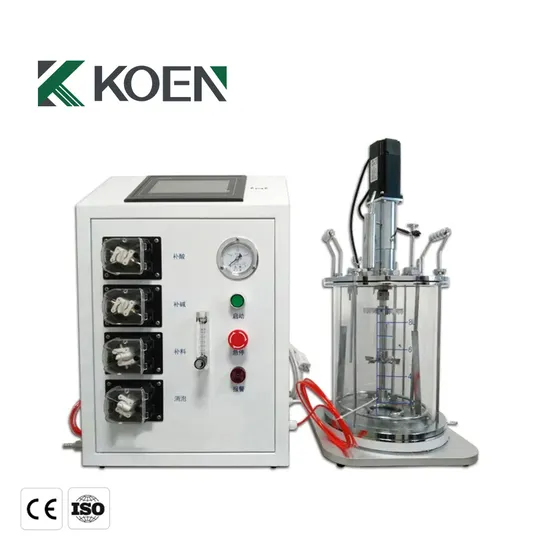

5L Glass Bioreactor Fluidized Fermenter Design Technology Bioreactor with Safe and Reliable Sterilization Process

Product Description

Product Description Bioreactor Glass Tank for Food & Beverage Factory Use
Stainless steel shaft coupling drive bioreactors fermenters Main body is made of all stainless steel 316L tank with no dead corners in the tank.
It adopts the direct coupling mechanical stirring method driven by the upper/bottom part, which has a simple structure and stable operation. it is with special sampling and discharge valves for fermentation tanks, and seed transfer pipelines.
Adopt a large-view tank liquid level observation mirror, 12V safety light, with temperature, PH, DO, defoaming, liquid level interface, inoculation port, refilling port, and multiple spare ports, all welds are firm, neat and beautiful.
Detailed Photos 1. It can control the stirring speed, the temperature of the medium in the tank, the Ph value, and the DO value;
2. The upper and lower limits of temperature, rotation speed, Ph value, DO value can be set, and the alarm function of exceeding
limit can be set;
3. With over-liquid level alarm and automatic refill function, with over-bubble level alarm and automatic addition of defoamer
functions;
4. All alarm accidents can be recorded and consulted;
5. Speed, temperature, Ph value, DO value, etc. can be set to automatic and closed state;
6. The temperature of the medium in the tank, stirring speed, Ph, DO and other parameters can be controlled by setting the curve
in sections according to the process requirements;
7. Each parameter has PID adjustment process display, such as setting value, real-time value, PID setting value, upper and lower
limit value, curve display, manual/automatic switching, online setting, etc.;
8. The historical data and curves of various parameters can be stored for many years, and the real-time curve can be restored as
it is when the power is turned on again;
9. Possess the function of replenishment measurement; regular and quantitative replenishment;
10. The system has a variety of related controls: the related control of speed and dissolved oxygen, the related control of
feeding and dissolved oxygen, the related control of feeding and ph, etc.;
11. The system has real-time display, data recording and data analysis of the running process;
12. The parameters of each detection and control loop can be manually set and corrected online on the screen, temperature, DO, PH
sensors can be adjusted and adjusted, and the flow rate of each peristaltic pump can be calibrated; the operation has a password
protection function, and the password is divided into operations Passwords of the administrator and administrator;
13. Automatically record the start-up time of the fermentation tank, the shutdown time, the number of power outages during
automatic operation, the time of power outage, the time of incoming calls, etc.;
14. The software system has adaptive and self-diagnostic capabilities;

Product Parameters

Model	GB-0.25	GB-0.5	GB-1	GB-2	GB-3	GB-5	GB-10	GB-15
Liquid filling coefficient	65-80%, 70% is the best
Total volume	0.5L	0.8L	1.2L	2.8L	3.7L	6.5L	12.8L	18L
Working volume	0.25L	0.5L	1L	2L	3L	5L	10L	15L
Stirring method	Mechanical stirring
Stirring speed range	50-1000rpm
Impeller	Multistage impeller
Heating method	Chassis heating/silicone tape heating							silicone tape heating
Temperature range	Room temperature +5~75ºC
Measurement	Temperature, PH, DO, Defoaming
Peristaltic pump	4 Adjusting PH (acid/alkali), deform, feeding
Vessel	GG-17&316L
Sterilization	In autoclave
Voltage	220V/110V
