China Agricultural Machinery Rotary Tiller 1gqn-100 with High Quality

Product Description

Product Description

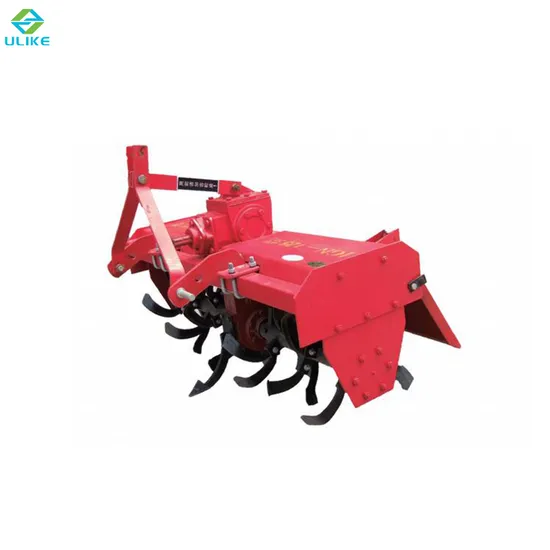

China Agricultural Machinery Rotary Tiller 1GQN-100 with High Quality

1GQN series rotary tiller with middle gear transmission, it can be mounted with the tractor 12-120hp. We can't see the wheel tracks on the soil after it worked. The quality of rotary tiller is good and the function very well. It issuited to dry land and paddy field. It can save time, labour and money etc.

1GLN series European rotary tiller with side gear transmission, 1GLN series rotary tiller with sidegear transmission, it can be mounted with the tractor 12-100 hp. We can't see the wheel tracks on the soil after it worked. The quality of the rotary tiller is good and the function very well. It issuited to dry land and paddy field. It can save time, labor and money etc strong point.
SGTN series rotary tiller is adopted middle gear transmission system, mounted with the tractor of 12-80HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. lt can reduce the time, laboring, and cost, etc. during operation.

Product Parameters

Type		1GQN-100	1GQN-115	1GQN-120	1GQN-125	1GQN-140	1GQN-150	1GQN-160	1GQN-180
Working width (mm)		1000	1150	1200	1250	1400	1500	1600	1800
Working depth (mm)	Dry land	8-14				12-18
	Water land	10-16				14-20
No. of disc (pc)		18	20	22	26	30	34	38	42
Weight (kg)		175	180	185	190	200	210	230	350
Linkage		Standard three point mounted				Standard three point mounted
Matched power (hp)		18-22	20-25	20-25	25	25-30	25-30	30-40	50-60

Type		1GQN-200	1GQN-220	1GQN-250	1GQN-300
Working width (mm)		2000	2200	2500	3000
Working depth (mm)	Dry land	12-16
	Water land	14-18
No. of disc (pc)		46	50	58	70
Weight (kg)		380	400	420	600
Linkage		Standard three point mounted
Matched power (hp)		55-75	60-80	75-80	90-120

Type		1GLN-85	1GLN-105	1GLN-125	1GLN-140	1GLN-150	1GLN-160
PTO Input speed (r/min)		540
Working width(mm)		850	1045	1245	1345	1495	1595
Working depth (mm)		120
No. of disc (pc)		16	20	28	28	32	36
Weight (kg)		200	220	240	260	280	320
Linkage		Standard three point mounted
Power required (hp)		12-20	20-30	25-35	30-40	30-45	40-50

Type		1GLN-165	1GLN-180	1GLN-200	1GLN-210	1GLN-220	1GLN-230	1GLN-240
PTO Input speed (r/min)		540
Working width(mm)		1645	1750	1950	2050	2150	2250	2350
Working depth (mm)		120-160
No. of disc (pc)		36	40	40	44	44	44	48
Weight (kg)		330	350	560	575	590	605	620
Linkage		Standard three point mounted
Power required (hp)		50-80	50-80	60-80	60-85	70-80	70-90	75-90

Type		SGTN-120	SGTN-125	SGTN-140	SGTN-150	SGTN-160	SGTN-180	SGTN-200	SGTN-250	SGTN-300
Working width (mm)		1200	1250	1400	1500	1600	1800	2000	2500	3000
Working depth (mm)		120-160
No. of disc (pc)		24	24	24	24	24	32	32	40	56
Type of blade		L-245
Weight (kg)		200	205	210	215	240	365	400	460	630
Matched power (hp)		20-25	25	25-30	25-35	30-40	50-55	55-75	75-80	90-120
Linkage		Standard three point mounted

Detailed Photos




Company Profile
Packaging & Shipping
CONTAINER: Put the machine into container, Maybe need disassemble, cheapest freight and fast shipping; After Sales Service

Before-Sale	After-Sale
1. Airport pickup, Booking hotel.	1. Visiting the famous scenic spots in zhengzhou.
2. Visiting our company yard, Enjoying Free test drive.	2. 1-Year warranty for All the equipments
3. Different machines to compare with each other.	3. A lifetime of parts and technical support.
4. Interpreting mechanical configuration information in detailed.	4. Fast parts deliver and quick reply for any feedback .

FAQ
1. How many days it need to deliver farm tractor?
We have more than 15 years experience to produce farm tractor and implements,as usual,we only need 15- 30 days to finsh it.
2. Why should I choose your farm tractor?
We are a professional manufacturer of agricultural machinery for more than 15 years,we attended many national projects and the customers are satisfied with our quality.
3. What are your payment terms?
T/T, L/C, Western Union, Moneygram, Paypal or other.
4. Do you have CE and ISO9001 certification?
Yes,all of our product have passed CE and ISO9001 certification.
5. How long is your product warranty?
Our warranty period is one year.

---
