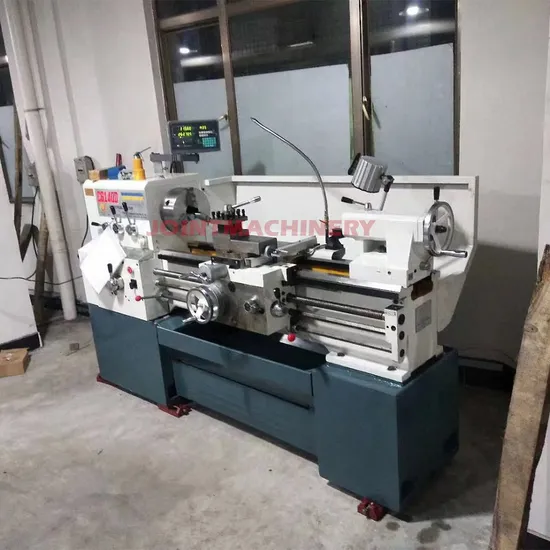

400mm Swing Over Bed Universal Manual Economic Lathe Machine for Easy-Operation

Product Description

√ The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.
√ Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision of box.
√ Transmission gear usd cnc gear grinding machining, and noise test, low gear noise.

China Factory Horizontal Conventional Manual Lathe Machine

Model			C6140D
Max swing over bed		mm	400
Max work piece length		mm	750/1000/1500
Bed rail width		mm	320
Max turning diameter of work piece on tool holder		mm	240
Maximum longitudinal travel of tool rest		mm	630,880, 1380
Maximum transverse travel of tool rest		mm	220
Bar diameter		mm	45
Maximum turning diameter of workpiece in saddle groove		mm	580
Valid length of gap		mm	200
Spindle center height		mm	202
Spindle head connection			C6
Through hole diameter of spindle		mm	46
Taper of spindle inner hole			MT6
Spindle rotation speed		r/min	25-1600
Taper of inner hole of top sleeve			MT4
Maximum movement in tip sleeve		mm	130
Maximum lateral movement		mm	±10
Thread	Inch system		80-33/4N/1"
	Metric system		0.45-20mm/r
	Module		0.25-10mm
	Diameter pitch		160-31/2DP
Motor specification			YD132M-8/4-B5 3-4.5KW
Belt specification			4-A-1900mm/4-A-2000mm
Dimension (L*W*H)	750mm	mm	1950*950*1250
	1000mm	mm	2200*950*1250
	1500mm	mm	2700*950*1250
Nei weight	750mm	kg	1400
	1000mm	kg	1500
	1500mm	kg	1600

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
