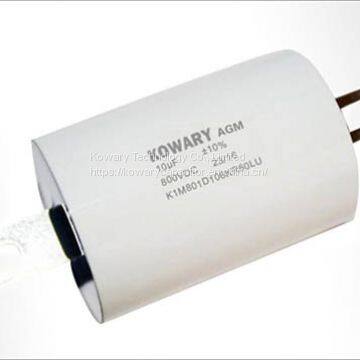

Power Electronic Capacitor High Ripple Current AGM

Product Details

Product Details

Product Description

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Polyester tape wrapping; UL94V-0 material filling
Output Threaded insert M5, M6 or M8, 2 Lugs
Dissipation factor ≤10×10-4 Measured at 100 Hz and 20±5℃
Life expectancy 100,000 hours at UNDC and 70 ℃(Hot-spot temperature)
Dielectric strength 1.6×UNDC applied to 10s at 20±5 ℃
Test voltage terminal to case 3KVAC/50Hz for 60s
Insulation resistance(IR*CN) ≥5000s but need not exceed 30GΩ, after 1 minute of electrification at 100Vdc (20±5℃)
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
Cap
(μF)
Dimension (Insert)
Output Insert
Du/dt
(v/μs)
Imax@60℃ @10KHz (A)
ESR @1.0KHz (mΩ)
D
L
P
UNDC 400Vdc, Urms 250Vac
K1M401D206KR50F5#***
20
41.0
50.0
62.0
M5*8
60
27
3.2
K1M401D256KR50F6#***
25
47.0
50.0
62.0
M6*8
60
32
2.7
K1M401D306KR50F6#***
30
50.0
50.0
62.0
M6*8
60
37
2.5
K1M401D406KR50F6#***
40
58.0
50.0
62.0
M6*8
60
46
2.1
K1M401D506KR50F8#***
50
64.0
50.0
62.0
M8*8
60
54
1.9
K1M401D506KR64F6#***
50
53.0
64.0
77.0
M6*8
30
40
2.7
K1M401D606KR64F6#***
60
58.0
64.0
77.0
M6*8
30
46
2.4
K1M401D806KR64F8#***
80
66.0
64.0
77.0
M8*8
30
56
2.1
K1M401D107KR64F8#***
100
74.0
64.0
77.0
M8*8
30
66
1.9
K1M401D157KR64F8#***
150
90.0
64.0
77.0
M8*8
30
90
1.6
K1M401D207KR64F8#***
200
104.0
64.0
77.0
M8*8
30
100
1.2
UNDC 800Vdc, Urms 400Vac
K1M801D106KR50F5#***
10
36.5
50.0
62.0
M5*8
70
23
4.3
K1M801D156KR50F6#***
15
45.0
50.0
62.0
M6*8
70
32
3.2
K1M801D206KR50F6#***
20
52.0
50.0
62.0
M6*8
70
39
2.6
K1M801D256KR50F6#***
25
58.0
50.0
62.0
M6*8
70
46
2.3
K1M801D306KR50F8#***
30
63.0
50.0
62.0
M8*8
70
52
2.1
K1M801D306KR64F6#***
30
55.0
64.0
77.0
M6*8
50
39
3.1
K1M801D406KR64F8#***
40
63.0
64.0
77.0
M8*8
50
48
2.6
K1M801D506KR64F8#***
50
70.0
64.0
77.0
M8*8
50
57
2.3
K1M801D606KR64F8#***
60
76.0
64.0
77.0
M8*8
50
65
2.1
K1M801D806KR64F8#***
80
88.0
64.0
77.0
M8*8
50
80
1.8
K1M801D107KR64F8#***
100
98.0
64.0
77.0
M8*8
50
95
1.6
UNDC 1000Vdc, Urms 500Vac
K1M102D505KR50F5#***
5.0
41.0
50.0
62.0
M5*8
120
23
5.4
K1M102D106KR50F6#***
10
58.0
50.0
62.0
M6*8
120
38
3.2
K1M102D156KR50F8#***
15
70.0
50.0
62.0
M8*8
120
52
2.5
K1M102D156KR64F6#***
15
58.0
64.0
77.0
M6*8
80
38
3.9
K1M102D206KR64F8#***
20
66.0
64.0
77.0
M8*8
80
47
3.1
K1M102D256KR64F8#***
25
74.0
64.0
77.0
M8*8
80
56
2.7
K1M102D306KR64F8#***
30
81.0
64.0
77.0
M8*8
80
64
2.4
K1M102D406KR64F8#***
40
93.0
64.0
77.0
M8*8
80
79
2.1
K1M102D506KR64F8#***
50
104.0
64.0
77.0
M8*8
80
90
1.9

Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.
