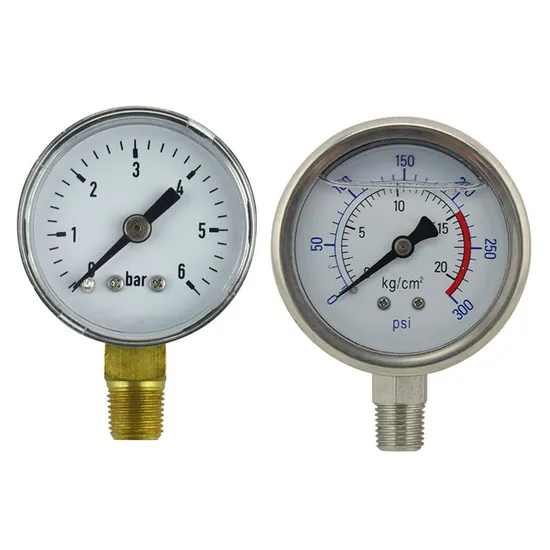

Pure Water Machine with Stand and Shockproof Pressure Gauge, 304 Stainless Steel Water Purifier Pressure Gauge

Product Description

Product Description
Product DescriptionPressure gauge is an instrument used to measure pressure, which can intuitively display the pressure value of gas or liquid. It is widely used in many fields such as industrial production, automobile manufacturing, aerospace, medical equipment, etc.
Its core components include sensitive elements (such as spring tubes, diaphragms, etc.) and transmission amplification mechanisms, which can convert pressure changes into pointer deflection movements, thereby indicating the corresponding pressure values on the dial. Its shell material is sturdy, with multiple options such as stainless steel and engineering plastic, and can adapt to different environments. The dial is clear and easy to read, with precise graduations. The pressure units cover international commonly used units such as MPa, kPa, and psi, meeting various engineering and scientific needs. There are various connection methods, such as threaded connections, flange connections, etc., which are convenient for installation and matching with various pipelines and equipment.
This pressure gauge has the characteristics of high precision and high stability, and can work stably in different temperature, humidity, and pressure ranges. Some models also have special functions such as shock resistance and explosion prevention, effectively ensuring reliable use in complex and harsh working conditions. It provides accurate pressure data basis for industrial process control, safety monitoring, etc., and is an indispensable key equipment in the field of pressure measurement. definition
A pressure gauge is an instrument that uses elastic elements as sensitive components to measure and indicate pressures higher than ambient pressure. It is widely used in almost all industrial processes and research fields.working principle
The pressure gauge undergoes elastic deformation under pressure through sensitive components inside the gauge, such as Bourdon tubes, bellows, and bellows. This deformation is transmitted to the pointer through the conversion mechanism of the movement inside the gauge, causing the pointer to rotate and indicate the measured pressure value on the dial.Measurement range control
The usage range of the pressure gauge should be controlled within the range of one-third to two-thirds of the maximum value of the pressure gauge to avoid inaccurate measurement or damage to the instrument caused by exceeding the range.Pressure gauges can be classified according to different classification criteria:
1.Classified by measurement principle:
Mechanical pressure gauge: using mechanical structures for pressure measurement, such as Bourdon tube pressure gauges, bellows pressure gauges, etc.
Electronic pressure gauge: measures pressure through electronic sensors and converts the measurement results into electrical signals for output, such as a digital pressure gauge.
Reed pressure gauge: using a curved reed to measure pressure, such as reed pressure gauges with pointers, reed type electrical contact pressure gauges, etc.
Hydraulic pressure gauge: using liquid (usually oil) to measure pressure, such as oil pressure gauge, hydraulic gauge, etc
2.Classified by the characteristics of the measured medium:
General type pressure gauge: used to measure the pressure of liquids, gases, or vapors that do not explode, crystallize, or solidify and have no corrosive effect on copper and copper alloys.
Corrosion resistant pressure gauge: used to measure the pressure of corrosive media, commonly used include stainless steel pressure gauges, diaphragm pressure gauges, etc.
Explosion proof pressure gauge: used in hazardous areas with explosive mixtures, such as explosion-proof electrical contact pressure gauges, explosion-proof transmitters, etc.
3.Classified by purpose:
Ordinary pressure gauge: used for general industrial measurement.
Specialized pressure gauges: such as ammonia pressure gauges, oxygen pressure gauges, electric contact pressure gauges, remote transmission pressure gauges, vibration resistant pressure gauges, pressure gauges with inspection pointers, double needle double tube or double needle single tube pressure gauges, etc., used for measuring specific fields or media.Product Parameters

Normal Size:	1.5"(40mm),2.0"(50mm),2.5"(63mm),
	3"(75mm),4"(100mm),6"(150mm).
Pressure Range:	-1Bar(-30"Hg)-0-1000Bar(15000Psi)
Accuracy:	±1%,±1.6%,±2.5%
Operating temperature:	-40°C to +60°C
Case:	Stainless steel
Bezel:	Stainless steel
Bourdon tube:	Copper alloy
	<100Bar: C-Type
	≥100Bar: Helical Type
Connection:	Brass
Movement:	Brass
Dial:	Aluminum
Pointer:	Aluminum
Window:	Polycarbonate or Glass
Thread:	1/8",1/4", 3/8",1/2";
	PT(BSPT,ZG),BSP(G,PF),NPT etc.
Liquid:	Glycerin or Silicone
Gaskets Filling cap:	Nitrile or Silica gel

Detailed Photos
Company Profile
https://rowaterfilter.en.made-in-china.com/contact-info.html Company Introduction
Changsha Lingbo Environmental Protection Technology Co., Ltd. is a high-tech enterprise focusing on water treatment accessories. Its main products include RO membranes, ultrafiltration membranes, filter cloths, filter bags, filter elements, water tanks, dosing pumps, metering pumps, and pharmaceuticals, which are widely used in new energy, microelectronics, petrochemicals, medical, pharmaceutical, food and beverage, water treatment, and automobile manufacturing. We are able to provide RO systems and various water treatment products for residential, commercial, and industrial components. We not only focus on the quality and performance of our products, but we continue to research and innovate to provide more efficient, energy-saving, and environmentally friendly products and solutions for global customers.
application area
Pressure gauges are widely used in various fields, such as industrial production, laboratory testing, fields, etc. This includes but is not limited to:
Industrial field: Pressure gauges are widely used in various industrial fields, such as petrochemicals, pharmaceuticals, food processing, etc. It can be used to monitor and control the pressure in fluid systems, ensuring the safety and stability of the production process.
Laboratory testing: In the laboratory, pressure gauges can provide accurate experimental data to assist researchers in experimental analysis and validation.
Automotive industry: Pressure gauges are used in the automotive industry to measure oil pressure, tire pressure, and other parameters of car engines. It can monitor the pressure status of various systems in a timely manner, ensuring the normal operation and driving safety of the car.
Packaging & Shipping
Our Advantages
We have a professional team, including experienced engineers and technicians. They possess profound professional knowledge and rich practical experience, and are able to provide customers with comprehensive technical support and after-sales service. Whether it's product selection, installation and debugging, or troubleshooting, we can provide professional solutions to ensure that customers can use our pressure gauges efficiently and conveniently.
FAQ
Q:Can you supply the OEM services?
A:No problem.
Q:Are you able to develop customized solutions for non-standard applications?
A:Yes, we can. We have a professional R&D team.
Q:Do you have technical drawings or data sheets of your instruments?
A:Yes, we can supply upon customer's request, please contact with the sales.
Q:What about the MOQ?
A:The minimum order amount is $1000USD. Small order can be negotiation.
Q:How about the delivery time?
A:The delivery time is 7-45days depends on the products type and quantity.
Q:Do you check the products before shipment?
A:Our products all are 100% inspection before shipment.
Q:What is the warranty policy?
A: 1Year warranty.

---
