Portable Concrete Mixing Plant and Pump Mobile Concrete Batching Plant Yhzm60

Product Description

Product Description
Mobile concrete batching plant

Mobile concrete batching plant is specially designed for projects that we need to change job sites from time to time. It is very easy to disassemble and move to another job site, the installation is also quite easy. For our new type of mobile batching plant, all parts are mobile and no reinforced concrete foundation is needed, including the cement silo. You just need a car to tow it to the new job site, place the machine in the right position and connect the cables, then you can use it.
Like stationary batching plant, the mobile batching plant is also equipped with water, cement and additive scales which can ensure the quality of the concrete. The capacity of mobile batching plant we have is from 20m3/h to 90m3/h. Welcome to contact us for details and quotations.

YHZM series of mobile concrete batching plant
Model	YHZM20	YHZS30	YHZS60	YHZS100
Production capacity (m3/h)	20	30	60	100
Concrete mixer ( drum mixer)	JZM500	JZM750	JZM1500	JZM2000
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1.5	1.5	1.5	1.5
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	42	46	67	77.5
Total weight)	12	13	14.5	26

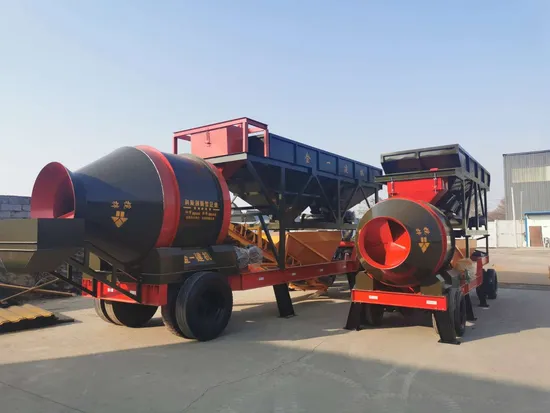

YHZM series of mobile concrete batching plant
Features: 1. No need to make concrete foundation, easy to install and move to other jobsites;
2. the mixer is drum mixer;
3. the cement silo is mobile;
4. the discharging height is 1.5m. In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.

NYHZS series of mobile concrete batching plant
Model	NYHZS25	NYHZS35	NYHZS50	NYHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer ( twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	1	1	1	1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	61	76	85	95
Total weight)	13	15	19	22

NYHZS series of mobile concrete batching plant
Features: 1. No need to make concrete foundation, easy to install and move to other jobsites;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is mobile;
4. the discharging height is 1m; In order to use transit mixer to collect concrete, we need to use a belt conveyor or make a ramp to increase the discharging height.

YHZS series of mobile concrete batching plant
Model	YHZS25	YHZS35	YHZS50	YHZS75
Production capacity (m3/h)	25	35	50	75
Concrete mixer ( twin-shaft mixer)	JS500	JS750	JS1000	JS1500
Aggregate feeding mode	Belt conveyor	Belt conveyor	Belt conveyor	Belt conveyor
Aggregate size(mm)	80/60	80/60	80/60	80/60
Discharging height(m)	4.1	4.1	4.1	4.1
Aggregate weighing accuracy (%)	±2	±2	±2	±2
Cement weighing accuracy (%)	±1	±1	±1	±1
Water weighing accuracy (%)	±1	±1	±1	±1
Additive weighing accuracy (%)	±1	±1	±1	±1
Control system	Panel	Computer	Computer	Computer
Total power (kw)	60	72	92	102
Total weight)	14	22	26	29

Title goes here.
Features: 1. we need to make concrete foundation;
2. the mixer is twin-shaft concrete mixer (planetary mixer can be used as well);
3. the cement silo is stationary, we need to make huge concrete foundation;
4. the discharging height is 4.1m;
Detailed Picture and Specification
drum mixer

twin-shaft mixer

vertical cement silo

mobile horizontal cement silo

Screw conveyor
1. the screw conveyor length is usually 8m; 2. the screw conveyor with the diameter of 219mm and 273mm are commonly used.
water, cement and additive scales
1. Cement weighing accuracy: +/-1%; 2. Water weighing accuracy: +/-1%;
3. Additive weighing accuracy: +/-1%;
4. Weighing sensor brand: American Transcell;
5. Air cylinder brand: AIRTAC
Packing&Shipping
Main parts packing
Main parts of the main is usually put into container and fixed and fastened by steel wire.
accessories packing
accessories are usually packed with carton box or wooden box.
After Sales Service
After sales services
1. providing foundation drawing, circuit diagra and operation manual; 2. providing commercial invoice, packing list, bill of lading etc. to help customer with customs clearance;
3. sending engineers to customer's job site to help customer with machine installation and operators training;
4. spare parts supply, machine problems solving.
