| US$299.00-499.00 | 2 Pieces (MOQ) |

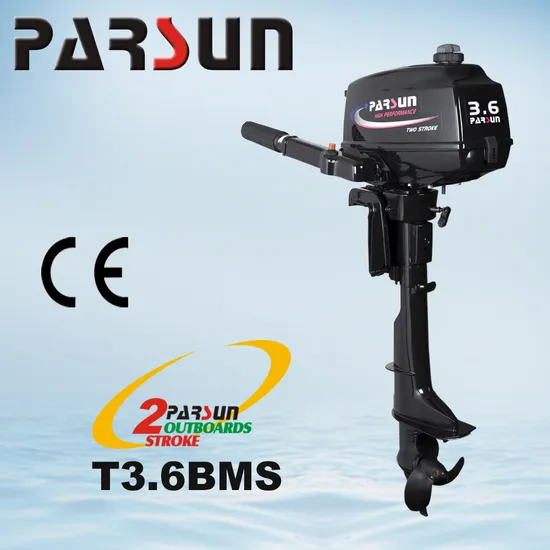

| Model | Unit | T3.6BMS | T3.6BML | |
| Item | ||||
| Overall length | mm(in.) | 597(23.5) | 597(23.5) | |
| Overall width | mm(in.) | 292(11.5) | 292(11.5) | |
| Overall height | mm(in.) | 968(38.1) | 1095(43.1) | |
| Transom height | mm(in.) | 381(15.0) | 508(20.0) | |
| Weight | Kg | 14.5 | 15.5 | |
| Full throttle operating range | r/min | 3800~5200 | 3800~5200 | |
| Maximum output | Kw (HP) | 2.643.6@5000 | 2.643.6@5000 | |
| @r/min | ||||
| Idling speed (Neutral) | r/min | 1.3E+07 | 1.3E+07 | |
| Cylinders | 1 | 1 | ||
| Displacement | cm 3 | 74.6 | 74.6 | |
| Bore ×stroke | mmin | 47×43(1.85×1.69) | 47×43(1.85×1.69) | |
| Ignition system | TCI | TCI | ||
| Control system | Tiller control | Tiller control | ||
| Starting system | Manual start | Manual start | ||
| Gear positions | Forward-Neutral-Reverse | Forward-Neutral-Reverse | ||
| Gear ratio | 2.08 (27/13) | 2.08 (27/13) | ||
| Trim and tilt system | Manual tilt | Manual tilt | ||
| Fuel tank capacity | L | Integral 1.5 | Integral 1.5 | |
| Maximum fuel waste | L /h | 1.8 | 1.8 | |
| Gear oil capacity | cm 3 | 100 | 100 | |
| Propeller options* | in | 3-7 1 /2"×7" or 3-7 1 /4"×6" | 3-7 1 /2"×7" or 3-7 1 /4"×6" | |
