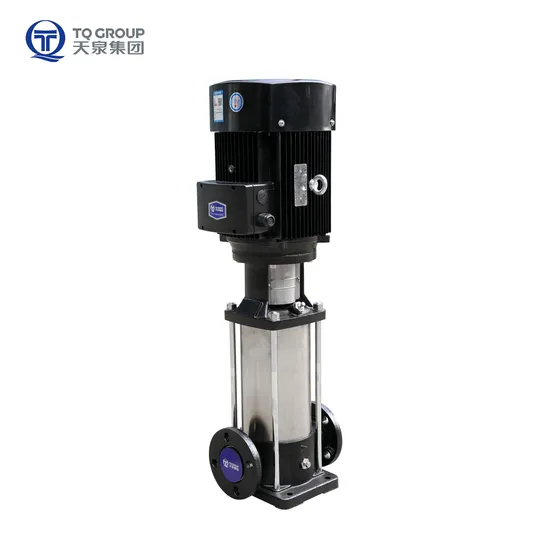

32m3h 2.5inch Vertical Multi-Stage Stainless Steel High Pressure Water Pump 5.5HP/7.5HP/10HP/15HP/20HP/25HP/30HP/40HP Multistage Pump

Product Description

Product Description TDL/TDLF pumps are non-self-priming vertical multistage centrifugal pumps with suction and discharge ports on the same level. This series works for water supply, firefighting, and water-pressure boosters. The pump comprises laser-welded stainless steel impellers, chambers, and a premium efficiency motor. The IEC-standards motor's pump stub shaft and motor shaft are directly close coupled. All pumps are equipped with a cartridge-type mechanical seal for easy maintenance. TDL is suitable for non-corrosive liquids and TDLF for mildly corrosive liquids.
Product Advantage
Hydraulic Coverage
Product Structural Drawing
Product Parameters

Model		Motor Power (kW)	Flow (m3/h)	16	20	24	28	32	36	40
TDL32 TDLF32	-1	1.5	Head (m)	12.5	12	11.5	10.5	9.5	8	6
	-1	2.2		15.5	15	14.5	13.5	12.5	11	9.5
	-1	3		27	26	24.5	22.5	20	16.5	12.5
	-2	4		32	31	30	28.5	26	23	19.5
	-1.5	5.5		46.5	45	43	40.5	3	32	26.5
	-3	5.5		49	47.5	46	43.5	7	35.5	30
	-2	7.5		61	59	57	53	47.5	41.5	33.5
	-4	7.5		66	64	62	59	54	48	40.5
	-2.5	11		78	76	73	68	62	54	44
	-5	11		84	81	78	74	68	60	51
	-3	11		96	93	89	83	76	66	55
	-6	11		101	98	94	89	82	73	62
	-3.5	15		113	110	105	99	90	79	65
	-7	15		118	115	111	105	96	86	73
	-4	15		131	127	121	114	104	92	76
	-8	15		136	132	127	120	110	98	83
	-4.5	18.5		148	144	138	130	118	104	87
	-9	18.5		154	149	143	136	125	111	94
	-5	18.5		166	161	154	145	133	117	97
	-10	18.5		171	167	160	151	139	124	105
	-5.5	22		184	179	171	161	147	130	108
	-11	22		189	184	177	167	154	137	116
	-6	22		201	196	187	176	161	143	119
	-12	22		207	201	193	182	168	150	127
	-6.5	30		219	213	204	192	176	155	130
	-13	30		224	218	210	198	182	162	137
	-7	30		236	230	220	207	190	168	141
	-14	30		242	235	226	214	197	175	148
	-7.5	30		254	247	236	223	204	181	151
	-15	30		260	252	242	229	211	188	159
	-8	30		271	264	253	238	218	193	162
	-16	30		277	269	259	244	225	200	170

---
