20km+ Coverage Waterproof Mobile Drone GPS Beidou Gnss Galileo Satellite Navigation Deception Spoofer System

Product Description

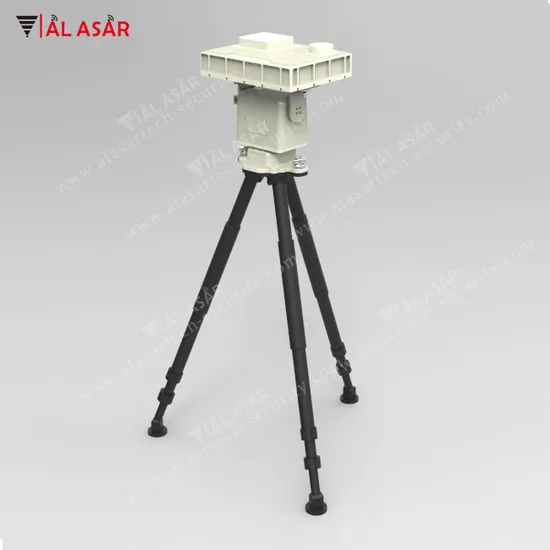

Product Description AAT-NV-SP02 Navigation deception spoofer device is based on self- developed satellite navigation simulation source and induction control technology. It can quickly intervene and take over the internal navigation system of the drone, thereby affecting and controlling the navigation and control flight system of the drone. The equipment has many features such as short initialization time, simple operation, automatic north calibration, fast intervention time for drones, high navigation signal simulation accuracy, control mode, large size and portability, automatic tracking and capture, etc.
AAT-NV-SP02 Satellite navigation deception technology, as a new generation of anti-UAV (drone) means, takes the guidance and control of UAV drone satellite navigation dronesystems as a breakthrough, and can achieve the goal of targeting multi-rotor or fixed-wing drones in various stages such as standby, take-off, cruising, and hovering within the defense range. Man-machine conducts omnidirectional or directional defense attacks. It is suitable for tasks such as temporary low-altitude area protection, security defense of key areas, urban public security protection, and anti-terrorism and stability maintenance in sensitive areas.
Product Feature
1.Navigation deception spoofer device has the characteristics of long operating distance: 50W power amplifier (actual effective in-band signal is about 300mW) can achieve navigation deception >20km;
2.High integration and small size: a single board card realizes 3 frequency points (can be upgraded to 4 frequency points) deception function, timing function, ephemeris calculation management function, and is the smallest among similar products;
3.Equipped with automatic north calibration, it can collect the surrounding magnetic field environment when turning on the machine for north calibration. The north calibration has high accuracy, and the north calibration is not affected by surrounding GPS interference;
4.The simulation (timing) accuracy is high and can support simulation signals with a time synchronization accuracy of up to 5ns;
5.It has an automatic tracking function. When there is target guidance information (position or orientation), the device can automatically align the target according to the target guidance;
6.It has a capture drone function. When there is position information of the target, it has the function of capturing the drone in the air(For example: Set a positioning point, and the drone will fly to that positioning point) and the capture accuracy is <50 meters;

It has a power adaptive function. When there is position information of the target, the device can adaptively generate the lowest adaptive power signal according to the distance of the target to minimize the impact and pollution of the signal on surrounding facilities; It has a drive-away function for typical civilian drones, and the drive-away angle can be set arbitrarily; It has emergency landing function for typical civilian drones; When there is target information (location or orientation), the device has automatic tracking function; Capable of capturing typical civilian UAVs with target location guidance (from radar, photoelectric and other discovery equipment); It has navigation interference function for typical civilian drones The equipment has a quick erection function, and the erection time is <15 minutes; Product Parameters

Item	Description
Signal frequency:	GPS/L1 (1575.42MHz), BDS/B1I (1561.098MHz), GLONASS/R1 (1602MHz) three-mode frequency(Other frequency bands can be customized)
Output power	with different configurations such as 10dbm (>1km), 30dbm (>5km), 40dbm (>10km), 47dbm (>20km)
Effective time	<1.5 seconds (with target guidance);
Signal coverage	Horizontal 0-360°, pitch -60~+60°
Automatic north calibration function	.It has automatic north calibration function and magnetic field environment background collection function, and the north calibration accuracy is <2 degrees;
Initialization time	5-7 minutes
Time simulation accuracy	<20ns
Remote control	Computer
power supply	AC 220V
power consumption	peak value <200W
protection level	IP 63
Operating Temperature	-20~65ºC
Product dimension	(10W) 400MM*300mm*44mm weight ≤13kg
Packing size	70*57*38 cm
Weight	host +tripod less than 30kg.

Background software Left operation bar
It is divided into three types of control functions, navigation deception, analog source, and map settings. Navigation deception mainly targets the navigation deception control functions of UAVs, including power settings, fixed-point trapping, directional eviction, navigation interference, induced landing and area protection functions.
Top display and operation area
Includes real-time display of current signal emission status, stop signal button, and buttons to minimize and exit the system.
Intermediate map situation
The map mainly displays the status of equipment, drones and other targets. The upper left corner of the map displays the longitude and latitude coordinates of the mouse movement in real time, as well as the number of satellites searched by the current device.
Right display area
The right side of the main interface mainly includes device management and real-time status. The device management area displays the running status of the devices in the current system in the form of a tree structure, and different functions can be operated by clicking on the shortcut menus of different tree nodes.

---
