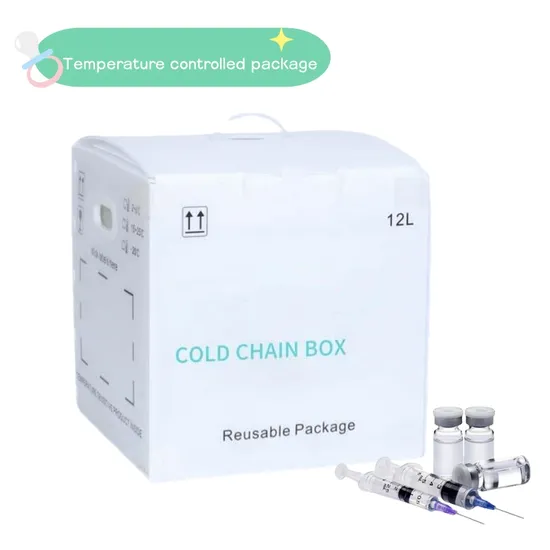

Uninversal temperature Controlled Shipper with PCM Precise Temperature Control and VIP Insulation for Medical Cold Chain

Product Description

DESCRIPTION
VA series cold chain package is an insulation shipper of using VIP(vacuum insulated panels) material with duration up to five days. This shipper is specifically designed to maintain temperature within basic safe temperature range during the cold chain transport, storage of medicine,vaccine, reagent or temperature sensitive chemicals and so on. All VA series insulation shipper are tested under ISTA 7D profile,Drop test,Stacking test, leakage test,Puncture test, which can ensure the safety of your cargo when enjoying high quality and exquisite deign. Switch Temperature Freely by PCM
[E]-30ºC~-20ºC
[B]-20ºC~-10ºC
[J]-10ºC~0ºC
[F]0ºC~+4ºC/+5ºC
[C]+2ºC~+8ºC
[D]+15ºC~+25ºC
[N]+25ºC~+35ºC
[U]+50ºC~+60ºC CCTS-VA FEATURE
·96-120 hours cooling preservation performance
·Pre-qualified according to ISTA, WHO,GSP
·Easy to Use and Assemble with detailed 3D manual and SOP manual
·Shock absorbent Damage resistant,Economical
·Custom sizing, insulation material and thicknesses, and printing availableApplication
Suitable for vaccines, drugs, reagents, sensitive chemicals and electronic components to be transported across international borders for a long time.Product Specification

Model No.	VA9696Q
Payload Volume	96 Liters
Coolant Type	PCM Coolant
Outer Dimension	645*635*655mm
Inter Dimension	505*505*505mm
Payload Size	459*459*459mm
Product Type	Reusable Type
Product Series	VA Series

VA Series

Model No.	Volume	O.D	I.D	Payload	Duration
VA1296Q	12L	375*370*390mm	285*285*285mm	231*231*231mm	96~120 h
VA1696Q	16L	420*385*387mm	318*318*318mm	268*268*268mm	96~288 h
VA2896Q	28L	445*440*460mm	355*355*355mm	315*315*315mm	96~288 h
VA5696Q	56L	520*515*540mm	435*435*435mm	394*394*394mm	96~288 h
VA9696Q	96L	645*635*655mm	505*505*505mm	459*459*459mm	120~288 h

Testing Graph
ABOUT USCold Chain Parterner form "China speed"Guangzhou Cesin Cold Chain Technology Co., is a supplier of cold chain temperature control packaging and temperature monitoring system solutions.Located in China,it focus on offering the one-stop cold chain tools and solutions (CCTS). Independently developed PCM (phase change materials )and cold chain packages can cover the temperature range from - 80 ºC to +60 ºC maintaining 24 to 168 hours at a constant temperature. In 2017,A special cold chain Internet of Things temperature monitoring system has been developed as strategic layout, which could monitor temperature and humidity in the whole process of cold chain, such as cooler boxes, refrigerators, refrigerators and so on. Real-time monitoring, early warning, analysis and management to escort the medical/food cold chain.
Our Factory
We have 46,000 square metres of production, R&D bases and marketing centres in Yuyao, Zhejiang, Guangzhou, Guangdong, and Wuhan, Hubei, with Intertek SQP third-party certification, and our products are marketed in Europe and the United States; the newly launched intelligent incubator temperature control range can be freely switched between -50 ºC, -25 ºC, -20 ºC, -16 ºC, +5 ºC, +20 ºC, +55 ºC, and supporting the GPRS/LoRa wireless monitoring system, combined with the automated verification platform to achieve a low-cost one box, one report, one GSP validation solution. LoRa wireless monitoring system, combined with the automated verification platform to achieve a low-cost one box, one report GSP verification solution.
Monitoring system
Certificate Honour

---
