AC220V/380V Emergency Stop F24-8d Telecrane Radio Remote Control for New Crane Hoist Trolley /Bridge/Eot/Overhead Crane

Product Description

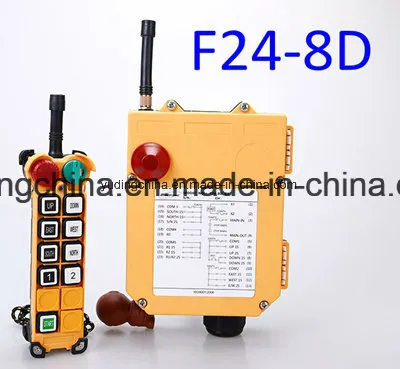

433Mhz F24-8D Telecrane radio Remote Control for New Crane Hoist Trolley, Bridge crane, EOT crane, Overhead Crane
Standard Configuration:

1. One transmitter;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.
If you need only transmitter , receiver, or 2 transmitter with 1 receiver contact me at any time.

Customized Product:
2 Transmitter with 1 Receiver
Feature:

Set the internal functions by computer interface
UP/DOWN ,EAST/WEST,SOUTH/NORTH,1/2,3/4 can be set normal,toggle,interlock or non-interlock.
Start&Alarm can be set start,inching,toggle and Normal.
Frequency VHF:310.0325-331.165MHz or 433Mhz ;Channel 160
Operation distance up to 100m

Specification:
Transmitter of data

TX Model	F24-8D-TX-V-(E)
TX Size	18.8x6.4x4.8(cm)
TX Weight	about290g(without Batteries)
Housing Materail	glass fiber-reinforced nylon-6
Protection Degree	IP65
Temperature Rating	-35°C ~ +85°C(Regardless of the battery temperature tolerance)
TX power Supply	Two 1.5 volts Batteries(AA Size)
Number of buttons	8 double speed push buttons,1 START button,1 mushroom button
Button Marking	arrow tip or English
I.D.Code	4.3 billion
Voltage Warning	TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V.
Operating Frequency	310.0325-331.165MHz or 425MHZ-441MHZ
Channel Spacing	0.2675MHz
Channel	80CH
RF Power	<10DBm
Fault Detection	TX Red LED is flashing quickly: 1.Not in the correct way to start; 2.One of the pushbutton is jammed. TX LED will flash slowly: 1.Please change two new batteries

Receover of data

RX Model	F24-8D-RX-V-(E)
RX Size	17.0x16.7x8.7cm
Housing Material	glass fiber-reinforced nylon-6
RX Weight	about 1153g
Protection Degree	IP65
connection diagram	english
Temperature Rating	-35°C ~ +85°ºC
Power Supply	AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,AC12V/DC12V, AC380V/AC220V(50-60Hz)
Relays	13 Relays control functions,1 relay control EMS and 1 relay reserve
Output Relays	5Amp Omniseal Relays(AC250V/10A Relays ,10Amp fuse)
I.D.Code	4.3 billion
Operating Frequency	310.0325-331.165MHz
Channel Spacing	0.2675MHz
Channel	80CH
Sensitivity	>=-110DBm
Interface	Cable output

Basic Information

Control Distance	Up to 100meters
Control Points	14
Frequency	Crystal
Structure	Glass-Fiber
Operation Frequency	315-331Mhz
Certificated	CE,FCC,ISO9001:2008
Unique Code	Over 4.3billion unique ID codes
Working Temperature	-35°C-+80ºC
Output Capacity	Full Sealed Relay output with 5 amperes
Transmitting Power	Less Than 10mw

Application:

Overhead bridge cranes, hoist, crane truck, mini crane
Gantry crane
Machine tools
Monorail hoists,
Motorized jib cranes
Other pieces of industrial equipment.


Certfication:

CE, FCC, ISO9001 certificated


Safety features

1.Unique 4.3 billion ID code

2.Hamming code

3.Enhanced watch-dog circuit

4.With FCC and CE certificate

Package

1 set per box, 6 pcs per carton, carton size: 76X50X33cm


WHy Choose us ?
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2.More than 20 people R&D working team, have the ability to research and develop new product independently.
3. Have 15 production lines. we also have many production machines such Printing circuit board machine, SMT machine, automatic wave soldering machine, automatic soldering robot, etc. also have many testing machine.
4. Well and high quality control, all working process according to ISO9001:2008.
5. CE, FCC & ISO certificates.
6. OEM acceptable
How To Produce controller?




Our product mainly: F21 series, F23 series, F24 series, F24-60 joystick Remote Controller
Such as F21-2D,F21-E1B,C-E1Q,F24-6D,F24-8D, etc
Mainly used for overhead crane, EOT crane, bridge crane, electric chain hoist, lifting, flatpalm, grab, etc

---
