3000W 6000W Tube Laser Cutting Machine with Automatic Loading and Unloading Device

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine and welding machine. The following is an introduction to one of the Tube Laser Cutting Machines:

HI-TECH ENTERPRISE IN CHINA HSGLaser, founded in 2006 as a hi-tech enterprise focusing on R&D, production and sales of laser equipment,
is dedicated to serve global customers with intelligent metal forming solutions. Serve 100+ Countries and Regions HSG Laser has built 4 standardized manufacturing bases in China, 10 branches/subsidiaries/sub-subsidiaries
and 30+ service outlets overseas. Now, we have a total staffff of 1700+ employees, incl. 221+ R&D personnel
and can produce 5000 sets each year by right of 80000m2 production area. Professional R&D Team Our R&D team values high-power machines and key spare parts. Until now, they have developed industry-leading
3D fifive-axis bevel cutting, P30 ultra-high-power autofocus cutting head, four intelligent digital chucks, Alpha T
and HSG-X9000 bus system and HSG-XMT multi-touch operating system.
Large Variety in Fiber Laser MachinesHSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to
be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser
cutting machine, bending machine, welding machine and automation equipment.
Product Description

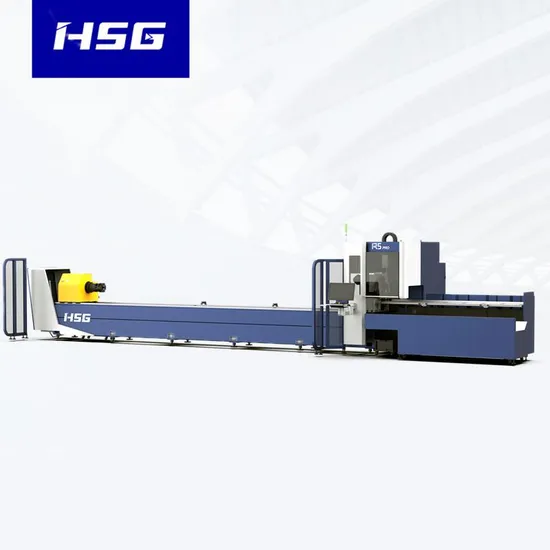

Tube Laser Cutting Machine 3000W-6000W
* The prices of machine with different powers are also different. Please contact the customer service staff for consultation.
Basic Information
Small Size, Rich Functions
R5 II is 15% smaller in size than same-grade model, TH65 and easily operated in a crowded workshop.
It deals with round, square, rectangular tube, as well as angle, channel, H-shaped steel.
The weight of single tube reaches 200kg.
HSG-X Bus Control System
Intelligent Production Line
Turning Plates for Unloading

Convey finished heavy tubes stably from high to low while unloading and protect
tubes from any possible harm and scratch.

Optional Automatic Loading Device

Fulfil both batch and separate orders
Double Squircle Pneumatic Chucks
<round>20-240mm <square>20*20-240*240mm Tailing length 85mm

Automatic centering
Expand clamping range of square tubes

Detecting sensor for front and rear chuck opening & clamping

Large and constant clamping force to clamp heavy tubes

KLINGE Autofocus Cutting Head
KLINGE, made of stainless steel, has a function of water cooling, dual-path cooling nozzle, ceramic ring, double focusing
protective lens, drawer-type pluggable protective lens, focusing and collimating lens.


Self-developed by HSG LASER
Autofocus accuracy ±0.01mm

Flow control for mirror-like surface cutting
Prevent spark splashing and scalds by SS protective pipes



Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.
Technical Parameter

Model	R5
Power	3000-6000W
X/Y-axis Positioning Accuracy	±0.03mm/m
Cutting Capacity of Round Tube	20-240mm
Cutting Capacity of Square Tube	20*20-240*240mm
Weight of Single Tube	200kg
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. * All testing results and experimental data shall be subject to real machine.

Sample Display

Certifications


Visit & Exhibition


Test & Packing
QUALITY TESTING EQUIPMENT

Tri-linear coordinates measuring instrument, Machine body leveller, Collimator, Precise height measuring instrument,
Guide rails straightness meter, Laser interferometer.


HIGH-STANDARD PACKAGE

To keep entire machine safe during long-distance sea transport, we adopt high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic fifilm and fifilling foam.





PROFESSIONAL AFTER-SALES SERVICE

Δ One-year Warranty
All unit components are warranted for 1-year, except items listed in the Exclusions section below.
Our after-sales engineer or local agent will supply new or remanufactured component of equal or better quality to replace the failed one.
Δ Exclusions
Unit components subjected to normal wear during the Warranty Period are not covered by warranty, including:

1. Nozzle 2. Protective lens 3. Ceramic ring

Machine breakdown caused by part handling/misuse or corrosion due to exposure to caustic materials, voids the warranty.

Component failure caused by customer misuse/abuse of the unit (e.g. using incompatible materials or wrong axial position settings), voids the
warranty.

---
