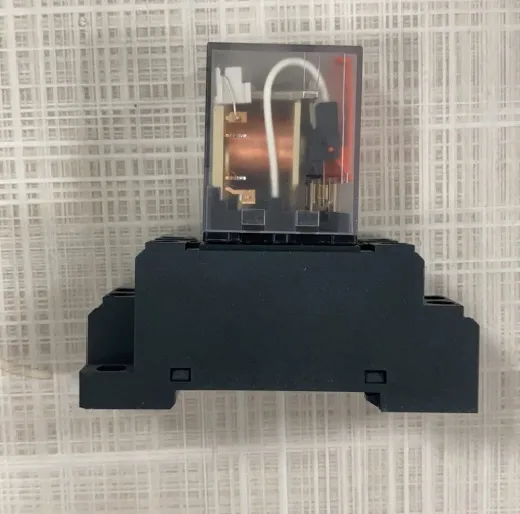

Industrial Relay 18fz Relay Output Electromagnetic Relay

Product Description

Type	HF18FZ
Coil voltage form	DC,AC
Coil voltage	DC: 6, 12, 100/110, 48, 24, 220 AC: 220/240, 48, 200/220, 110/120, 24, 100/110, 12
Contact arrangement	4 Form C, 2 Form C
Contact version	Single contact
Terminal type	Plug-in
Mounting	Standard
Construction	Flux proofed
Coil power	Standard
Sort	Single side stable
Contact capacity	AgNi
Insulation standard	Class F
Parallel coil components	DC: Component, With free-wheeling diode AC: Component
Contact endurance	With LED and button, with LED no button, No LED no button
Contact plating	No gold-plated, Gold-plated
Packing method	Plastics packing
Rated voltage(V)	220
Coil power	Approx 0.9
Dielectric strength (between coil & contacts) (VAC 1min)	2000
Operate time(ms)	≤20
Release time(ms)	≤15
Coil resistance(Ω)	6:41×(1±15%) 12:165×(1±15%) 24:662×(1±15%) 48:2725×(1±15%) 100/110:11440×(1±15%) 220:53780×(1±15%)
Creepage Distance(mm)	3.2
Electrical Distance(mm)	3.0
Insulation resistance(MΩ)	1000
Max. switching Current(AC)	7
Max. switching Current(DC)	7
Max. switching voltage(VAC)	277Va.c.
Max. switching voltage(VDC)	30Vd.c.
Ambient temperature (max)(ºC)	-40
Ambient temperature (min)(ºC)	70
Mechanical endurance min	50000000(See approval reports for more details)
Electrial eddurance min	400000(See approval reports for more details)
IEC60335-1	YES
Product Description	Miniature intermediate power relay
Application	Industrial control, home appliances, processing equipment
Typical application	Control panel, power supply, forming machine, welding equipment, vending machines, communications equipment, disaster prevention equipment, photocopiers, measuring instruments, entertainment machine
Weight(g)	Aporox. 35.6
Volume(mm³)	Without button:28×21.5×36 with button:28×21.5×37.5
Product approval	UL,VDE,CQC
File No.	UL:E133481,VDE:40048406,CQC:CQC17002183722

7A SWITCHING CAPABILITY (2C,3C TYPE)
2.0KV DIELECTRIC STRENGTH (BETEEN COIL AND CONTACTS)
CONFRM TO THE CE LOW VOLTAGE DIRECTIVE
WITH SOCKETS
2 TO 4 POLE CONFIGURATIONS
ENVIRONMENTAL FIRENDLY PRODUCTS (ROHS COMPLIANT)
OUTLINE DIMENSTION (28X21.5X35)MM
UL, TUV, CQC AVAILABLE
DC, AC AVAILABLE Product Description
Multi Contact Relay Introducing the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD. This relay is designed to meet the reading habits of English-speaking natives, offering a range of features and benefits that make it a reliable and efficient choice for various applications.
Features: Multi contact arrangements: 2NO+2NC, 3NO+1NC Forcibly guided contacts according to EN50205 6A switching capability Low input power: 360mW High insulation capability: 10kV surge voltage between input and output UL insulation system: Class F available Environmental friendly product (RoHS compliant) Outline Dimensions: (40.0 x 13.0 x 24.0) mm With its multi contact arrangements, this relay provides flexibility and versatility in various electrical circuits. The forcibly guided contacts ensure reliable and safe operation, meeting the standards set by EN50205. With a switching capability of 6A, it can handle high electrical loads with ease.
Featuring low input power of only 360mW, this relay offers energy efficiency and helps reduce power consumption. The high insulation capability, with a surge voltage of 10kV between input and output, ensures optimal safety and protection against electrical surges.
Our Multi Contact Relay is designed with an UL insulation system, with Class F available, providing added reliability and durability. Additionally, it is an environmentally friendly product, compliant with RoHS regulations.
With its compact outline dimensions of (40.0 x 13.0 x 24.0) mm, this relay can easily fit into various applications without occupying excessive space.
Choose the Multi Contact Relay by NINGBO KAIFENG HIGHLED INTELLIGENT TECHNOLOGY CO.,LTD for a reliable and efficient solution to your electrical circuit needs.

---
