Advanced Plastic Drum Blow Molding Machine for Engine Oil Production

Product Description

EXTRUSION BLOW SERIES

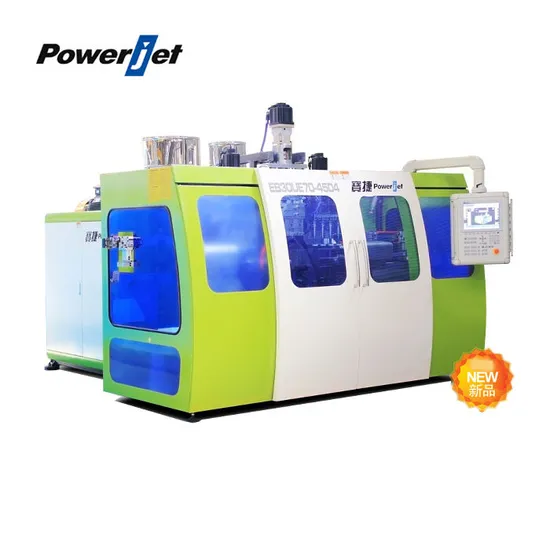

HIGH-SPEED DOUBLE STATION EXTRUSION BLOW MOLDING MACHINE EB30U/EB70U
Powerjet Double Station Extrusion Blow Molding Machine EB30U/EB70U is specialized for manufacturing bottles and containers under 10L.
FEATURES:
1:Toggle balance clamping structure
2:Based on the Finite Element Analysis Design, and platen, toggle and platen frame made in high-intensity nodular cast iron.
3:High speed mold clamping oil cylinder
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion
5:Multi-screw & multi-die head
6:Multiple-way PID controlled temperature heating
Product Description


Company Information
Product Parameters

MODEL	UNIT	EB30U65S EB30UW65S	EB30U70S EB30UW70S
Max.Product	L	4
Clamping Force	kN	65/85
Carriage Stroke	mm	500/550
Max. Mold Size(WxH)	mm	400x355 500x325
Screw Diameter	mm	Φ65	Φ70
Screw L/D Ratio	L/D	25	25
Screw Rotary Speed	RPM	65	65
Extrusion Weight(HDPE)	kg	55	165
Extrusion Motor Power	kW	15	18.5
Pump Motor Power	kW	7.5	7.5
Heating Capacity	kW	17	17
Operation Pressure	Mpa	0.6~0.8	0.6~0.8
Air Consumption	m³/min	2.0
Cooling Water Consumption(25ºC)	L/min	50	50
Machine Dimension (LxWxH)	mm	4000x2850x2400
Machine Weight	kg	4500	4650

Packaging & Shipping

Our Services

FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years of Experience In Manufacturing Injection Molding Machines and Blow Molding Machines.
Q2: Is it possible to send an engineer to install and commission the machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after-sales service and technical support. Therefore, we need you to prepare an invitation letter for the visa before shipment. However, please be noted that all costs for visa, travel, the hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.

---
