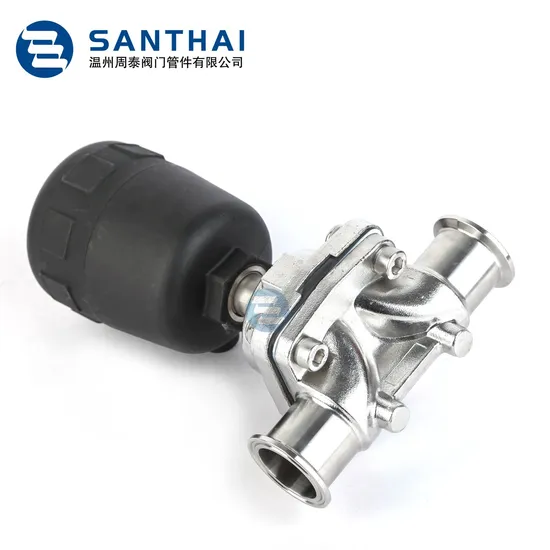

Sanitary Pneumatic Diaphragm Valve Tri Clamp Plastic Pneumatic Head SS304 316L Valve Body Hygienic Grade 2 Way Diaphragm Valve EPDM PTFE

Product Description

Wenzhou Santhai Valve Pipe Fittings Co., Ltd (Since 2006)Stainless Steel 316L Tri Clamp Plastic Pneumatic Head Diaphragm ValveTechnical Datas

Valve Body Material	SS316L
Availably standard	3A/BPE/DIN/ISO/IDF/SMS
Availably size	1"-3",DN20-DN65
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably connection	Clamp/weld/thread/special connection
Operated	Manual,Pneumatic
Max. Working Pressure	10Bar
Availably structure	Straight, tee, U-type, tank bottom
Max. Working Temperature	120 degree C
Application scope	Dairy,food, beverage, pharmacy, cosmetic, etc

Wenzhou Santhai Valve Pipe Fittings Co., Ltd (Since 2006)
is a modern enterprise integrating design, production, sales and service projects. Santhai company is specialized in sanitary stainless steel butterfly valve, ball valve, check valve, clamp&union sets, pipe fittings, fluid equipment, non- standard accessories and other stainless steel products. The products are widely used in food, pharmaceutical, cosmetics, water treatment, beer and beverage equipment and other complete equipment.
Santhai Valve Pipe Fitting keys to research and develop new technology to guarantee quality and offer good service. Hence, we gain a good reputation in sanitary stainless steel industry. Warmly welcome new and old customer to contact us, mutual benefit and mutual cooperation.

---
