Basic Info.
Maximum Measurement Range
≥6D
Viscometer Reproducibility
±1%
Measuring Range(MPa/S)
20~100,000
Rotating Speed (Rpm)
Four Adjustable Speed: 6, 12, 30, 60
Number of Spindles
Spindles (Code L1, L2, L3, L4) Are Equipped with T
Power
Power Adapter (Input: 100-240V,50/60Hz)
LCD Screen Display
Viscosity, Speed, Torque Spindle, Temperature
Transport Package
High-Quality Cartons
Production Capacity
1000units/Month
Product Description

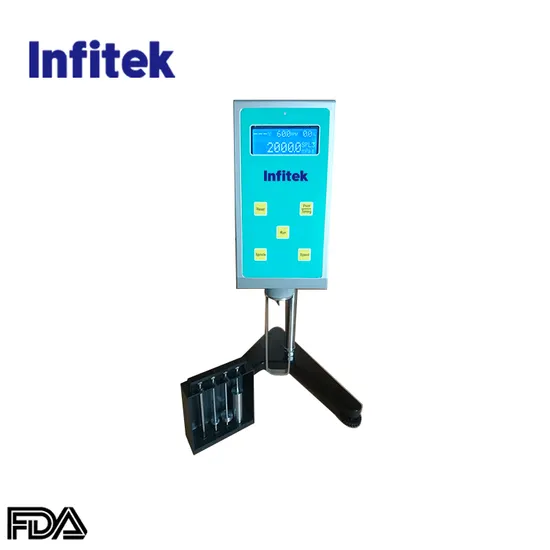

Infitek VSC-N1 High Precise Newtonian Fluid Digital Rotational Viscometer Specifications Main Technical Indicators
Measuring Range(mPa·s)
| 20~100,000
|
Rotating Speed (RPM)
| Four adjustable speed: 6, 12, 30, 60
|
Number of Spindles
| Spindles (Code L1, L2, L3, L4) are equipped with the product
|
Accuracy
| ±5% relative error
|
Return Capacity
| ±1% relative error
|
Power
| Power adapter (input: 100-240V,50/60Hz)
|
LCD screen display
| The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.
|
Apparatus to be equipped
digital viscosity meter
| 1 pce
| ascending and falling rack
| 1 set
|
standard spindle
| 1 set
| power adapter
| 1 pce
|
protective frame of spindle
| 1 pce
| spanner
| 1 pce
|
Seat and leveling feet
| 1 set
| RS232 standard output interface
| 1 pce
|
Options
Extreme low viscometer adapter (with one spindle L0) Small sample adapter (with spindle 21, 27, 28 and 29 each) Spindle L5 Temperature-controlled heater (with spindle 21, 27, 28 and 29 each) RTD temperature probe Specially used printer Packaging & Shipping Certifications
About Us
FAQ Q: How about quality of the goods?
A:
All the running products comply with CE standards.
Independent quality inspection team, conducting multiple inspections and random inspections from parts supply to product dispatch.
Well-known third-party testing service available, such as SGS, BV, and TUV, etc.
Q: What are your pre- and after-sales services?
A:
Timely reply to pre-sales enquiries
Real-time update of manufacturing and shipment status
Contracted third-party maintenance company in over 60 countries
Assured availability of parts supply for 10 years at least
Q: Is OEM service available.
A: Most of the running products are available for OEM customization, including logo, package and function, if attainable, customization.
Q: How long is the lead time:
A: Generally, the lead time for most stocked products is about 7~15 days, vary by models and production schedule. For those non-stocked products, the manufacturing lead time is around 20 days.
>>
