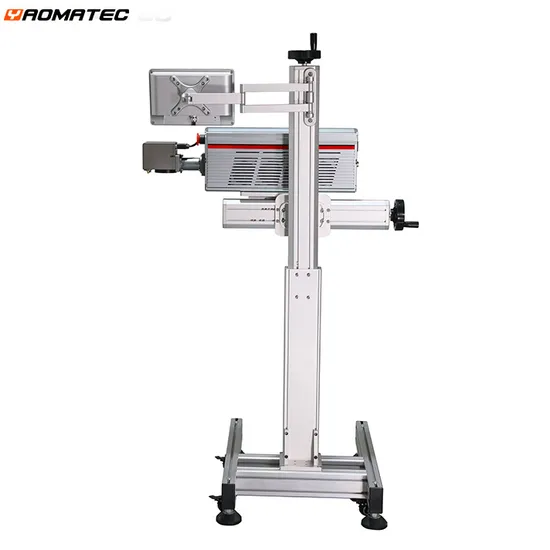

Yaomatec 30W CO2 laser marking machine for beverage bottles Product Parameters
| technical index | 30W |
| Parameter of laser | laser | CO2 laser |
| | Wave length | 10.6 um |
| | Laser tube life | 30,000-40,000 hours |
| | Average output power | Adjustable from 0 to 30 watts |
| | Range of frequency | 0KHZ-30kHz |
| | Power stability (average power) | Plus or minus 5% |
| | Angle of divergence | <7mrad |
| | Property of polarization | Vertical line polarization |
| | Power stability (peak power) | 40W |
| | Beam quality | M1.8-2.0 <2.6mm |
| Marking header parameters | Speed of marking | >=7000-8000mm/s (high speed >=10000mm/s) |
| | Mark character speed | 300 characters /s, Roman font, 1mm high |
| | Mark character speed | 300 characters /s, Roman font, 2mm high |
| | Precision of marking | 3-5 microns or less |
| | Minimum marking line width | 10 microns or less |
| | Depth of marking | ≤1mm(depending on material) |
| | Type of font | Built-in a variety of font effect selection, font can be edited |
| | Effect of font | Dot matrix or line printing effect, can be edited and modified on their own font |
| | Minimum character height | 0.5 mm or less |
| Optical output characteristics | Range of marking | Focusing lens F=160mm, range 100×100mm(standard) can be equipped with a variety of ranges 0-500mm |
| | Working focal length | 160mm±2mm(160 focusing lens) |
| Indicating laser light | Laser type/wavelength/power | Double red light, wavelength 10.6um,30W |
| Cooling system | Mode of cooling | Air cooling |
| Property of system | Rated power rating | 0.6 KW |
| | Power requirement | 220V/ single phase /50Hz/600W |
| | Environmental requirements | 0~35ºC, humidity ≤90% |
| Other | Mode of maintenance | Lifetime maintenance free |
| | Industrial protection | IP54 |
| | Support for printing information | Can print text information, variable information, serial number, batch number, bar code, two-dimensional code, micro mark and pattern. There is no limit on the number of lines and font size of information printed. |
| | Applicable materials | Non-bare metal, paper products, food packaging bags, PVC, PET, PA, PPO extrusion materials, glass, etc. |
