Construction Wire Mesh Welding Machine

Product Description

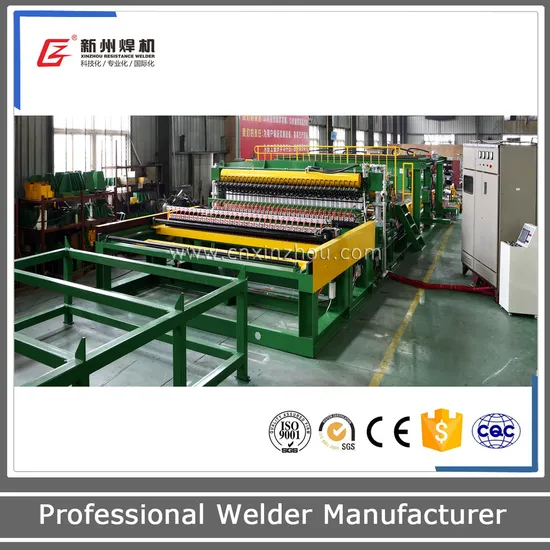

Auto special welding machine for steel mesh GWC-B
Automatic wire mesh welding machine (type B)
Design Idea
GWC-2800-B of auto bar-mat reinforcement resistance welder is a type of auto metal mesh production line successfully developed by the company in accordance with the domestic advanced welding technology. The types of welding machines developed by our company possess the following features:
l The main frame is welded by the superior and thick steel plate with proximate matter, to strengthen and tighten the main structure.
l Adopted the well-known exported industrial control product, which can help to increase the security for the system, simplify the operation, standardize the size for the mesh and make the welding point become beautiful and strong.
l The types of weld mesh crate are diversified that the longitudinal grid can be adjusted manually while the horizontal grid can be set by the computer; given that this machine can produce various mesh crate, it brings lots of flexibility and convenience for the clients.
l Applied effective welding transformer in the process of welding, it forces the circulating water to be cool, with small volume to save energy.
l In order to adapt to the capacity of the power transformer and reduce the current surge, it can use in a lump sum or by several times of phase sequence to discharge the power, i.e. simultaneous pressure and welding at several times.
l The wearable alloy material or heat treatment material has been applied in the moving part of the equipment, to ensure the intensity and durability of the overall device.
l A direct indicator of starved feeding and a trouble warning device are designed in this machine, with personnel design idea to make the operation simpler.
All the purchased parts are adopted the standard components with famous brand, to guarantee the quality and safety
Auto reinforcing mesh welding machine (Series B)
GWC-3300-B GWC-2800-B GWC-2400-B
GWC-2100-B GWC-1600-B GWC-1200-B
Main technical parameters

Maximum welding speed	40-60 time/min
Maximum width of welding	≤2500mm
Maximum step distance at a time	3000mm
Step distance of the preloaded material	2800mm
Longitudinal bar spacing	≥50mm (increasing) manual regulation
Transverse bar spacing	≥50mm PC settings
Diameter of longitudinal bar	6-12mm
Diameter of transverse bar	6-12mm
Maximum welding capability	Diameter: 12mm+12mm
Welding material	ribbed bar; there is no corroding or lime drawing agent
Feeding method of longitudinal bar	manual work +pre-feeding
Feeding method of transverse bar	Pre-cut material/ automatic blanking (straightness accuracy: 2mm/M)
Transformer power	13×100kVA
Supply voltage	415V±10%
Bleed pressure	0.6-0.8MPa 2 cubic meter/min
Pressure of cooling water	0.3MPa 50L/min

Rated power	GWC-3300-B	16×100KVA
	GWC-2800-B	14×100KVA
	GWC-2400-B	12×100KVA
	GWC-2100-B	10×100KVA
	GWC-1600-B	8×100KVA
	GWC-1200-B	6×100KVA

---
