Wide Belt Sanding Heavy Duty Woodworking Machinery Woodworking Machine Sanding Machine

Product Description

We supply high quality Woodworking Belt Sander Sanding Machine BSG2113RX Product Application
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
(2) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.

2. Standard installation:
(1). Sanding belt automatic centering.
(2). Pneumatic sanding pad (RP model)
(3). Schneider Electrical component
(4). Brush roller cleaning the panel after sanding
(5). Pressure shoes guarantee feeding work pieces stably
(6). Japanese NSK internal bearing reduce vibration of belt
(7). Photoelectric control equipment which control vibrating of abrasive belt along center.
(8). Automatic air blower on sanding belt to prolong the life time of sanding belt

Model	BSG2113RX
Working width	40--1300mm
Working thickness	3--120mm
speed of abrasive belt	18m/s
size of abrasive belt	1330*2800
Feeding speed	8-40m/min
Roller diameter	φ420mm
Power of sanding belt	75Kw
Feeding power	11Kw
working pressure	0.6Mpa
compressed air consumption	0.15m³/min
speed required for dust collector	25-30m/s
compressed air volume	≥8000m³/h
Dimension	2915*2075*2250mm
Weight	6900Kg

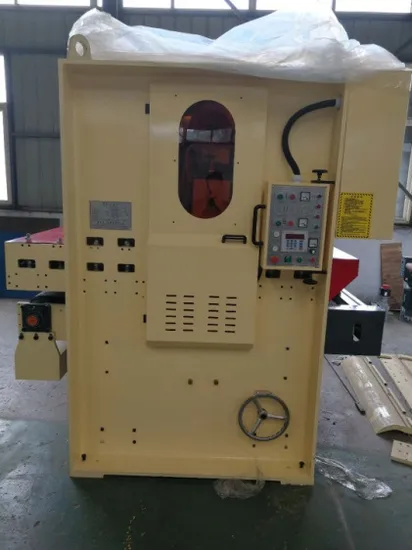

Details Image
Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements
Delivery:About 30 days after receive the down payment delivery
Our company&factory
FAQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port

---
