High Speed Machine Hj/400ba

Product Description

H Series /Precision High -Speed IMM
Sepcial design, Super speed
Clamping unit, High rigidity
Ultra-thin product, High Q&E
Injection &charging , High precision
Close-loop servo, Unique leading
Oil bushings, Stable Durable
H series main features: Clamping structure / unit as well as machine body is with high rigidity &high load capacity design , which can ensure machine's stability and durability Suitable hydraulic system design matches with high response controller , which guarantees the machine with shorter cycle time and achieve high speed / precision function requirement We have adopted oil self-lubricating bushings and good quality steel rod as well as long lifespan design and manufacture of clamping pins for the machine Coaxial and high agility single cylinder fast injection structure has greatly improved the plastics melting capacity & plasticizing performance The machine is suitable for the processing of thin-wall packing and long flow path products , so as to make sure the production efficiency accordingly

INTERNATIONAL CLASS NO.	400/828
SPECIFICATION	HJ/400BA
screw type	A	B
injection unit
screw diameter	55	60
screw L/D ratio	27	24.8
shot volume (theoretical)	593	706
injection weight(ps)	540	642
injection speed	410	410
injection rate	890	1059
injection pressure	160	134
screw speed	0-350

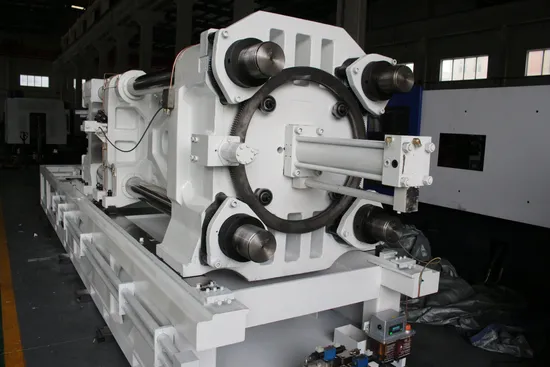

clamping unit
clamping force	4000
open stroke	640
space between tie-bars(w*h)	690*670
max.mould height	670
min.mould height	250
ejector stroke	100
ejector force	70
others
pump max. pressure	19/16
pump motor power (servo)	40+40
heating power	23
numbers of heating area	3+1
machine dimension(l*w*h)	7.8*1.95*2.45
oiltank cubage	850
machine weight	18.2

Company Information
HAILONG GROUP-NINGBO BEILUN ALLWAY MACHINERY CO., LTD.is located in HAILONG industrial park, national developement zone beilun ningbo ,our company is long engaged in the professional manufacture of high precision injection molding machine. we have successively introduced machines with clamping force form 90-3000Ttons as well as more than 20types of special application machines which is leading the market.
Our company has a high qualified team who are specialized in the research and development as well as manufacturing engineering technology for all kinds of injection molding machine for long time. we have created lots of injection molding machneproduct proprietary technology and we have built up quick respinse output mechanism that can offer personalized solutions for our customer based on their requirements. with strong and powerful strength for the technology design and equipment manufacture , our products design has integrated with international advanced technology as well as the indeas of keeping on improving , creation and transcendence.
Based on the powerful strength of the head company HAILONG GROUP ,our company has built a HAILONG machinery intelligent manufacture system.integrated with european technology "WELLISH&"AOTAI" brand several series of export-oriented high end special application injection molding machine are very popular with customers form home and abroad.
