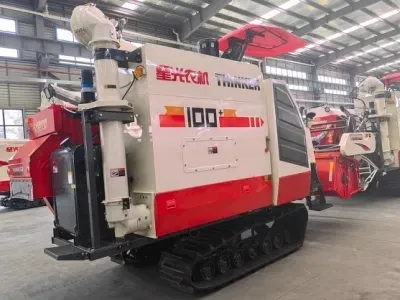

Hot Sale Small Harvester Agricultural Crawler Wheeled Grain Combine Harvester

Product Description

Product Description
Corn harvester :
self-propelled corn harvester has a compact design, short body, strong maneuverability, small turning radius, convenient U-turn, and high harvesting efficiency; new dynamic periphery, novel design Fashionable, beautiful and practical, and easy to maintain; the original harvesting platform can realize harvesting without rows and adapt to various row spacing and agronomic requirements.

No.	Item		Unit	Upgraded 4LZ-4.5 Specification
1	Model		/	4LZ-4.5
2	Sturcture Type		/	Vertical Axis Flow Full Feeding Rubber Crawler Self-propelled
3	Engine	Type	/	4-Cylinder,Vertical Engine,Water Cooled, DI-Injection, Turbocharged Engine
		Rated Power	kw	78
		Rotating Speed	r/min	2400
4	Dimension(L*W*H):	Working State	mm	4850*3200*2500
		Transportation	mm	4850*2735*2500
5	Weight		kg	3000
6	Cutting Width		mm	2180
7	Feeding Capacity		kg/s	4.5
8	Minimum Ground Clearance		mm	310
9	Operation Speed		km/h	1.8 to 5.3
10	Productivity		hm2/h	0.25 to 0.65
11	Fuel Consumption		kg/hm2	18.5 to 40
12	Cutter Type		/	Standard Type II
13	Cutting Header Auger Type		/	Telescopic Transverse Conveyor Auger
14	Reel	Type	/	Eccentric Tooth(off center)
		Diameter	mm	∮1000
		Quantity	pc	5
15	Threshing Roller	Quantity	pc	1
		Type	/	Vertical Axis Flow Spike Tooth
		External(D*L)	mm	∮655*1877
16	Concave Sieve Type		/	Grid
17	Brake Type		/	Wet Friction Plate
18	Fan	Type	/	Centrifugal
		Diameter	mm	∮346
		Quantity	pc	1
19	Rubber Crawler	Size	/	450mm*90mm*56
		Track Gauge	mm	1190
20	Gear Box		/	Hydraulic Stepless Speed Transmission(HST)
21	Rethresher Type		/	Auger Spike Tooth
22	Grain Unloading Type		/	Hydraulic Rate

Detailed Photos
Packaging & Shipping

Company Profile
FAQ
Q: What is the warranty of your agricultural machines?
A: Warranty period for machine is one year ,vulnerable parts are not in the warranty coverage,details please see our Warranty Certificate.
Q: What is the after-sales service ?
A: We provide training for Pre-sales and After-sales service and Spare Parts Supply,including Demonstration,technical Consultant, New Machine Delivery Guiding ,Peroidic Maintenance, Repairring and so on, and we can send our technicians to local market to support during the harvesting season.
Q:How long is your delivery time ?
A: 10- 60 days after our bank received the payment or L/C.
Q: Is OEM or ODM service acceptable ?
A:OEM and ODM service both available, if you have any special requirements about the machines please contact us, we are open to customize products and provide solutions for your local conditions.

---
