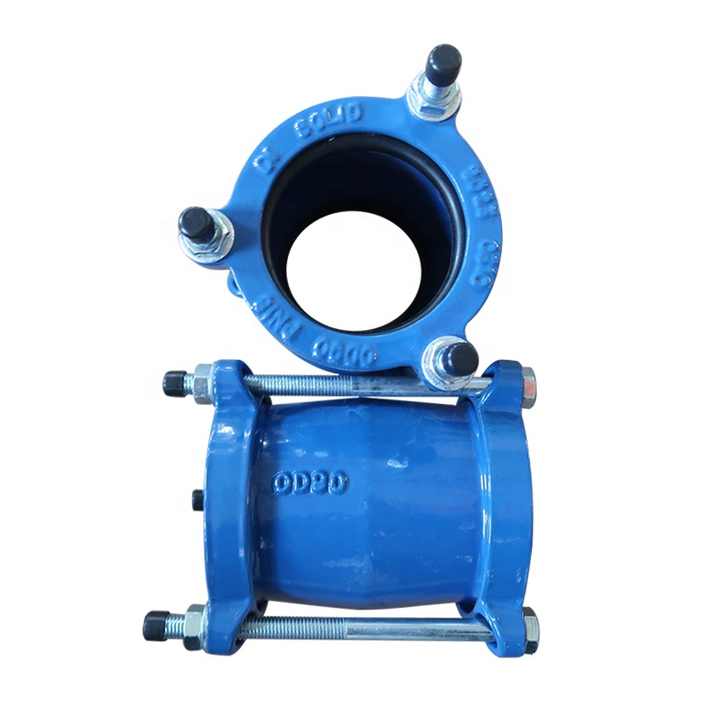

ISO2531/EN545 DCI Ductile Iron Gibault Joint for PVC pipe/ steel pipe/ AC pipe

Product Details

Product Description

Product Description
Product Description
PERFORMANCE DATA:
Max Recommended Operating Pressure: 1200 Kpa
Min Recommended Operating Pressure: -80 Kpa
Max Recommended Operating Temperature: 60 Celsius
STANDARD MATERIALS:
Sleeve: Grey Iron to AS1830
Flanges: Grey Iron to AS1830
Bolts: Hot Dipped Galvanised Cup Head
Seals: Natural Rubber to AS1646
OPTIONS:
Sleeve Coating: Bitumen Dip, Rilsan Nylon 11, Napguard:
Flanges Coating: Bitumen Dip, Rilsan Nylon 11, Napguard
Bolts Material: Stainless Steel, Powder Coated, Black
Seals: Alternative rubber compounds available upon request
Products are available for application outside the standard performance criteria listed above. Please contact your Crevet Technical Representatives at your nearest for more information.

SIZE	BOLTS		A	B	C	H
	SIZE	QTY
50	M12×180	2	135	130	110	122
63	M12×180	2	140	145	120	132
75	M12×180	2	152	145	120	132
90	M12×180	3	170	150	120	132
110	M12×210	3	194	160	140	151
125	M12×210	4	209	175	140	151
140	M12×240	4	228	175	140	151
160	M12×240	4	250	175	140	152
200	M12×240	4	294	220	170	181
225	M12×240	6	321	220	170	181
250	M12×280	6	347	220	170	181
315	M12×280	6	414	220	175	185
400	M12×280	8	505	245	195	210
500	M12×280	10	618	245	195	210
