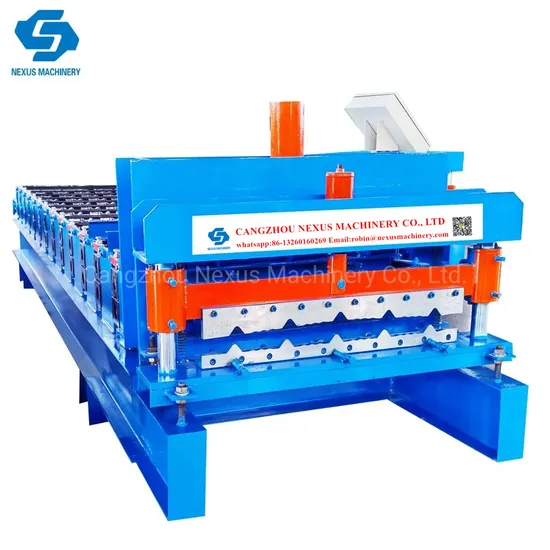

Cold Metal PPGI Coils Trapezoidal Roofing Sheets Roof Panel Wall Sheets Roll Forming Machine with CE ISO Certification

Product Description

Company Profile
Established in 2005, Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.Our range of products: Roof Tile Roll Forming Machine, Metal Decking Sheet Roll Forming Machines, C/U/Z/W/L Steel Purlin Roll Forming Machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania, Ethiopia, Gana, Guinea, South Sudan, Algeria, Niger, Philippines, Indonesia, India, Azerbaijan and Kazakhstan.We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
Product Description
High Quality Trapezoidal Roofing Sheet Machine Cold Metal PPGI Coils Trapezoidal Roofing Sheets Roof Panel Wall Sheets Roll Forming Machine with CE ISO Certification one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suits thickness range is from 0.30mm to 0.70mm PPGI,GI sheet coil width 1250mm. We adopt 16mm thick wall board to make machine frame strong and beauty. Usually it can run with the speed to10-15m/min, PLC with touch screen operation make the machine simple and easy for usage.
Detailed Photos
Product Parameters

Configurations	manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station, PLC control system
Material	Raw material	PPGI, GI Sheet
	Coil width	1250mm
	Thickness	0.30mm-0.70mm
Manual Decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:1250mm
	Capacity: 5T
Main Machine	Number of Forming steps	12 steps for 840 trapezoidal sheet and 13 steps for 900 sheet
	Shaft diameter	70mm solid shaft
	Design type	Middle plate welded
	Machine frame	350# H steel welded
	roller material	45# steel, surface hard chromium plating.
	shaft material	45# steel
	Work speed	10-15m/min
	Transport	By chains
	Power of main machine	5.5 kw SHANGHAI LICHAO
	Type of cutting	Hydraulic guide pin cutting
	Cutting tolerance	±1mm
	Cutter	Gcr12MOV
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	PLC control	PLC DELTA, TAIWAN
	PLC language	English and Chinese
	Transducer	7.5KW Delta, TAIWAN
	Touch screen	7 Inch large screen, DELTA, TAIWAN
	Function	Automatic length and quantity measurement
	coder	Omron, JAPAN
	Other electrical device	International brand
	Weight	About 5.5 tons
	Dimension	About 8500*1500*1700mm L*W*H
	Main body color	Yellow and blue
	Voltage	380v/50hz/3ph

Packaging & Shipping

Exhibition

After Sales Service
1. Engineer will give free training lessons to labors in buyer's factory.
2. The Buyer need buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by incorrect operations, we will provide the buyer spare parts at cost price.
4. We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
FAQ
FAQ
1. Are you manufacturer or trading company? We are manufacturer .
2. Do you provide installing and training overseas? Overseas machine install and worker training services are optional.
3. How is your after sales support? We provide technical support on line as well as overseas services by skillful technicians.
4. How does your factory do regarding quality control? There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5. How can I trust you that machines pasted testing running before shipping? 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
