L99H01QFTR motor drive chip ST original stock

Product Details

Product Description

Product Description
describe

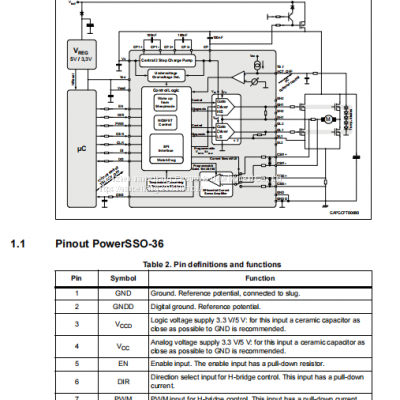

L99H01 is designed to control a bridge configuration of four external n-channel MOS transistors for DC motor drive in automotive applications. A freely configurable current sensing amplifier is integrated. The integrated standard serial peripheral interface (SPI) controls all outputs and provides diagnostic information. The interface pin of external mosfet thermal sensor is realized.
features
• Operating power supply voltage 6 V to 28 V
• Central 2-stage priming pump
• 100% duty cycle
• Full RDSon as low as 6 V (normal level MOSFET)
• Control reverse battery protection MOSFET
• Charging pump current is limited
• PWM operation up to 30 kHz
• SPI interface
• Current detection amplifier/free configuration
• Zero point adjustment for line end fine adjustment
• Power management: programmable free wheel rotation
• Sensing circuit of external MOSFET
Embedded thermal sensor
application
• Wipers
• Electric door
• Seat belt tensioner
• Seat positioning
• Electronic valve
• Parking and rest
• 2H motor

---
