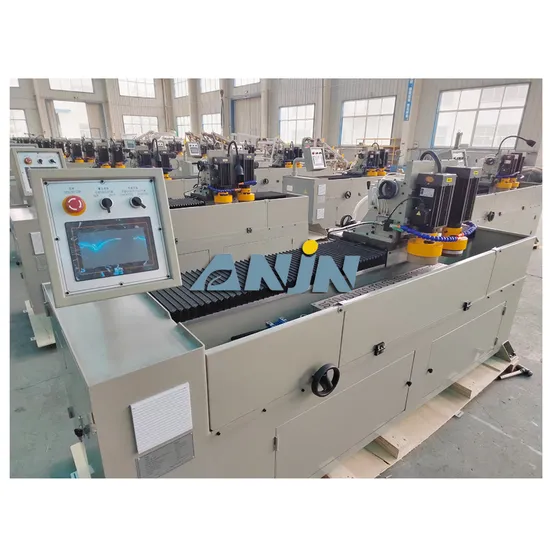

High Precision Knife Grinding Machine for Veneer and Plywood

Product Description

Product Description:

High precision knife grinding machine for veneer and plywood:
Main parameter of the High precision knife grinding machine for veneer and plywood :

Maximum working length	1000mm
Electromagnetic table size	200x200x1040mm
Electromagnetic table rotation angel	0°~90°
Main grinding head size	150x120x90mm(cylinder shape)
Grinding head motor power	2.2kw
Grinding head lifting motor power	400w (servo motor)
Grinding head vertical stroke	0-100mm
Side grinding head size	150x120x90mm (cup shape)
Side grinding head motor power	1.5kw
Grinding head cycle back and forth motor power	0.25kw
Grinding head cycle back and forth moving speed	10.3m/min
Cooling pump motor power	90w,3phase
Dimension size	2625x917x1332mm

Characters:
High-strength gantry welding mechanism, the overall structure is solid and compact;
inner cavity structure with anti-twist and shock absorption functions,
the internal stress of the bed is eliminated by thermal heat treatment; The rail belt adopts mounted rectangular linear guide rail, and can be replacement, ensuring that the accuracy is not affected by the wear of working;
Two grinding heads, one is rough grinder and another is the fine grinder
Servo motor which make the blade is high precision.
Note:Grinding wheels large amount supply,accept customized. FAQ Q1:Why ANJN? 100% customer oriented solution. 20+ years wood-based industrial team members. Strongest awareness protect customer business privacy. Deep insights&penetrate the tricks on the market. Familiar with international jargon. Attention to detail&integrity allows us to grow. Q2:Could u offer engineer service at sight? Yes,as normal,ours engineer with experienced,and visa services,tickets,and flight. Q3:Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Because we are always expecting long term business. Regarding the price.we are not sure if it is lowest or highest,But we will be offering reasonable.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines. Q4:Can you customize products for clients? Yes We can customize products according to the customer's requirements or drawings.At same time,Strongest awareness protect customer business privacy. Q5:What's your warranty? can you do more service for us? we wish would be protected after purchasing machine? We are pleased to give products continuous after sales service. Within 12 months, if spareparts broken,we will response timely. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficulty. we must help to make solutions within 48 hours.

---
