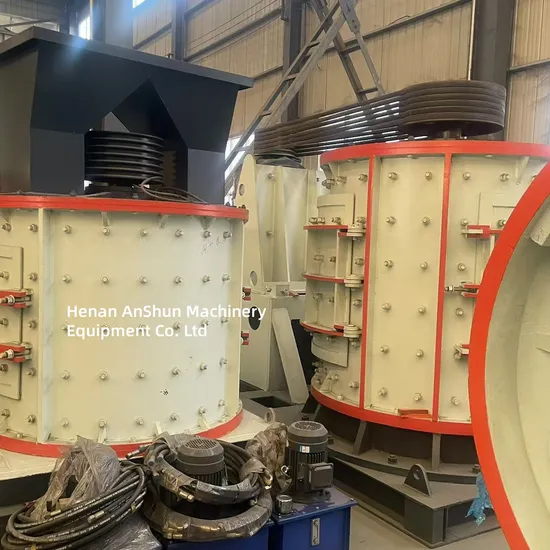

High Efficiency Vertical Combination Compound Crusher Machine

Product Description

Product Introduction
Vertical compound crusher is a new type of fine crushing and coarse grinding product developed by integrating the technologies of similar crushers at home and abroad and optimizing the main technical parameters. It is mainly used for medium-sized cement raw materials and clinker, and provides an ideal fine crushing equipment for the technical transformation of cement plants or the construction of new cement production lines. It is also suitable for the crushing of other medium-hard ores such as iron ore, sandstone, gypsum, blast furnace slag, coal gangue, lump coal, etc. It has the characteristics of large crushing ratio, low energy consumption, stable operation, simple structure, and convenient operation and maintenance.
Product Advantages1. High efficiency and energy saving: The vertical compound crusher adopts a high-efficiency rotating working mode, has a high crushing efficiency, can achieve large-scale production, and has low energy consumption and relatively low operating costs.
2.Easy maintenance: Simple structure, easy to maintain and service. Operators only need to perform regular inspections and maintenance according to the instructions to maintain the normal operation of the equipment.
3. Large crushing ratio: The crushing ratio of the vertical compound crusher is large, and the maximum crushing ratio can reach the discharge particle size, which can be adjusted arbitrarily and is not affected by the wear of the hammer and liner.
Working Principle
The motor drives the central shaft, hammer disc and hammer head to rotate at high speed. The material enters the crushing chamber under the action of gravity and the high-speed rotating hammer head, collides with the hammer head and is impact-crushed. The material collides, rubs and grinds multiple times in the crushing chamber, and finally forms particles that meet the requirements and are discharged from the lower discharge port.
Vertical compound crushertechnical parameters

Model	Size of Feed(mm)	Size of Feed Outputting(mm)	Capacity(t/h	Spindle Speeds(r/min)	Power(kw	Overall Dimensions(LxWxH)(mm)
PFL-800	<100	<3-560-90%	10-20	934	37	2100×1200×1700
PFL-1000	<120	<3-560-90%	20-40	769	55	2600×1400×1900
PFL-1250	<150	<3-560-90%	40-70	530	90	2800×1600×2100
PFL-1500	<190	<3-560-90%	70-100	495	160	3100×1900×2200
PFL-1750	<200	<3-560-90%	130-190	424	200	3710×2360×2390
PFL-2000	<220	<3-560-90%	160-230	370	250	4100×2660×2620

Applicable materials
medium and fine crushing of hard and medium hard rocks such as quartz, river pebbles, calcite, dolomite, granite, basalt, iron ore, limestone, diabase, bluestone, etc.
Company Profile
Henan Anshun Machinery Equipment Co., Ltd. is a modern enterprise engaged in the research and development, production, sales and service of equipment in the fields of mining crushing, building crushing, tower sand making, etc. It is the first unit to pass the ISO9001 quality certification system, the EU CE certification unit, and an enterprise with the right to import and export. Over the years, the company's products have been sold well throughout the country and exported to Vietnam, North Korea, Central Africa and the Middle East countries and regions. The company's after-sales service team is spread all over the world. The complete after-sales service management system has been recognized and praised by the industry, and is well-known at home and abroad, becoming a shining pearl in my country's mining machinery manufacturing industry.Packaging & Shipping
Certifications
FAQ
Support:We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.After-sales service support :After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.Technological support :ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.

---
