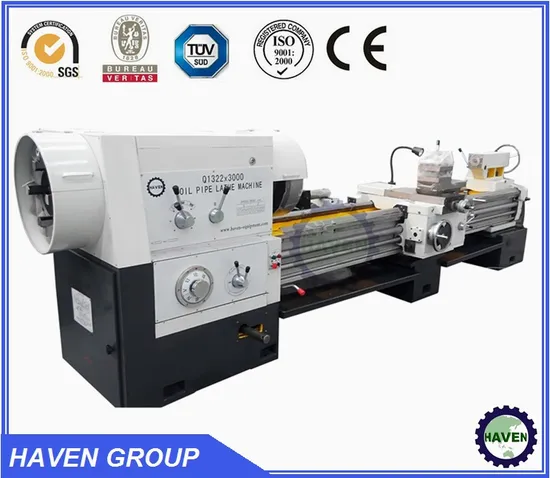

Q1322/3000 Pipe Threading Lathe Machine

US$99.00-99,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q1322/3000
Processing Accessory
oil pipe
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Iron Pallet
Specification
Q1322/3000
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
50 Units/Month

Product Description

Q1322/3000 Pipe Threading Lathe Machine
Main specification:
Type Unit Q1319 Q1322 Q1327 Q1332
Max. dia. swing over bed mm 630/800 630/800 1000 1000
Max. dia. swing over croos slide mm 340/550 350 610 610
Spindle bore mm 200 225 280 330
Range of machining pipe thread mm 50-190 50-220 130-270 190-320
Max. length of work piece mm 1500,3000 1300 1700 1700
Max. tapper of work piece 1:4 1:4 1:4 1:4
Max. traverse of tapper device mm 750 750 1000 1000
Width of bed mm 490/550 550 7500 7500
Power of spindle motor Kw 7.5 11 22 22
No. and Range of crosswise feeds r/min 22kinds/0.02-0.45 32kinds/0.04-0.65 40kinds/0.05-1.5 32kinds/0.05-0.75
No. and range of spindle speed r/min 12steps/24-300 12steps/20-460 12steps/16-380 9steps/7.5-280
No. and range of Lengthways feeds mm 26kinds/0.07-1.33 32kinds/0.1-1.46 40kinds/0.1-3 32kinds/0.1-1.5
No. and range of metric thread mm 24kinds/1-14 21kinds/1-15 30kinds/1-30 23kinds/1-15
No.and range of inch thread teeth/inch 40kinds/2-28 26kinds/1-14 27kinds/1-28 22kinds/2-28
Screw pitch inch 1/2 1/2 1/2 1/2
Saddle rapid traverse mm/min 4000 2500 3740 3740
Cross slide rapid traverse mm/min 2300 200 1870 1870
Max. traverse of saddle mm 1310,2810 1110 1500 1500
Max. traverse of cross slide mm 390,490 360 520 520
Max. traverse of turret mm 200 200 300 300
Size of tool section mm 30x30 30x30 45x45 45x45
Max. rotation angle ° +/-60° +/-60° +/-90° +/-90°
movement on cross slide dial mm/scale 0.05 0.05 0.05 0.05
movement on turret mm/scale 0.05 0.05 0.05 0.05
Dia. And type of tailstock quill mm/mores 100/m5# 100/m5# 140/m6# 140/m6#
Traverse of tailstock quill mm 205 250 300 300
Cross movement of tailstock mm +/-15 +/-15 +/-25 +/-25
Overall dimensions cm 365,515x144x139 330x145x150 460x220x152 500x210x160
Net weight kg 4440,5290 4500 10000 11500
Chuck 4-jaw 520 4-jaw 520 4-jaw 800 4-jaw 800
