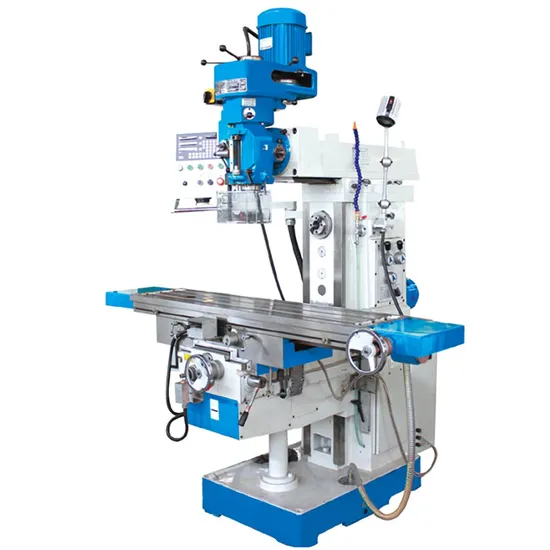

Xq6332 Turret Milling Machine CNC Machine Is Optional

Product Description

Product Description
Horizontal spindle widens the range of applications significantly
300mm worktable can be ordered at special request.
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
igh speed variable milling head on available
Headstock swivels ± 45°
otary table( ± 45° ) is optional accessories
CNC machine is optional
Product Parameters

Specification	Unit	XQ6332A	XQ6332C
Table size	mm	1370x320
Table travel (X/Y/Z)	mm	820/300/400	1000/380/400
Rapid speed of tab e (X/Y/Z)	mm/min	1335/1335/1000
Spindle taper		(V):3HP: R8 or ISO30; 5HP: ISO40
		(H):ISO40
Table feed (X/Y/Z)	mm/min	XY:30-830 Z:23-625
Distance oetween horizontal nose and:able surface	mm	75-475
Distance between spindle axis and ram surface	mm	200
Spindle speed range		(V)Stepless speed change:43-3225 Step speed change:65-4660 (16 steps)
	r/min
		(H)12 steps 35-1500
T-slots(No.Avidth/pitch)	mm	3/14/80
Arm travel	mm	450
Main motor power		3HP or 5HP
		3Kw
Torque of X/Y/Z axis AC servo motor	N.m	15
Overall size	mm	1820 x 1680x2350
Net weight	kg	1750	1800

Detailed Photos
High speed variable millinghead on available

Headstock swivels ± 45°
Rotary table( ± 45° ) is optional accessories

---
