127mm Brazed Diamond Concrete Core Drill with Great Wall Segments From Made in China

Product Description

Product name	Great wall segment diamond core drill bits
Production technology	Brazed
Segment types	Great wall segment
Diameter Optional	25mm-350mm
Drilling materials	Drilling concrete, reinforced concrete, masonry
Drilling types	Wet drilling
Drilling equipment	Core drilling machine,hand drill

Main products: The main product ranges include laser welded saw blade, brazing saw blade, sinter hot-pressed saw blade, diamond grinding cup wheel, laser welded core drill, diamond wire etc.

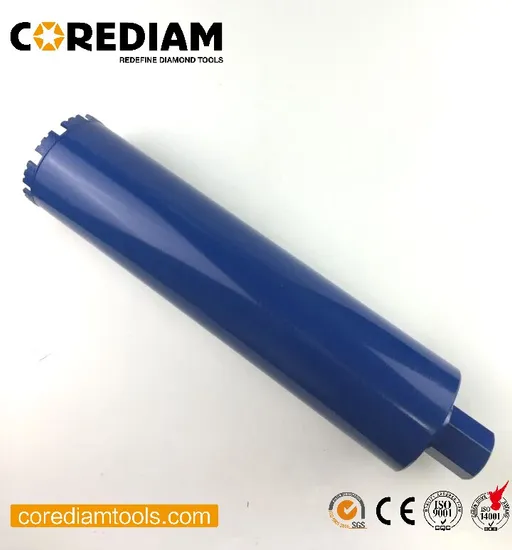

Product Description This type of core drill is copper brazed, it can be widely used in wet drilling concrete, reinforced concrete, masonry with superior efficiency.
The segment sharp is great wall segments.
It can be installed on Stand Core Driller, Hand-Held Drillers.

Advantage:
1. very good sharpness achieve fast drilling, especially very fast when cutting steels meanwhile, wet core drill have a reasonable lifespan.
2.We accept customized lengths and segments for wet core drills.Also, we help to design the total solution of core drilling projects.
Specification:

Item No.	Diameter	Segment Height	Arbor	Effective Length
CWDA02545010	25mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA03245010	32mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA03645010	36mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA04245010	42mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA05245010	52mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA06245010	62mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA06645010	66mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA07245010	72mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA07645010	76mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA08245010	82mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA09245010	92mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA10245010	102mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA11245010	112mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA12745010	127mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA13245010	132mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA15245010	152mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA16245010	162mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA17245010	172mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA18245010	182mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA20045010	200mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA25045010	250mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA30045010	300mm	10mm	1 1/4"UNC / 1/2''BSP	450mm
CWDA35045010	350mm	10mm	1 1/4"UNC / 1/2''BSP	450mm

Detail presentation:
Company Profile

Factory support:
Excellent production capacity and strict quality control system guarantee.

---
