High Accuracy Capillary Rheometer for Comprehensive Materials Rheology Testing

Product Description

Product Description

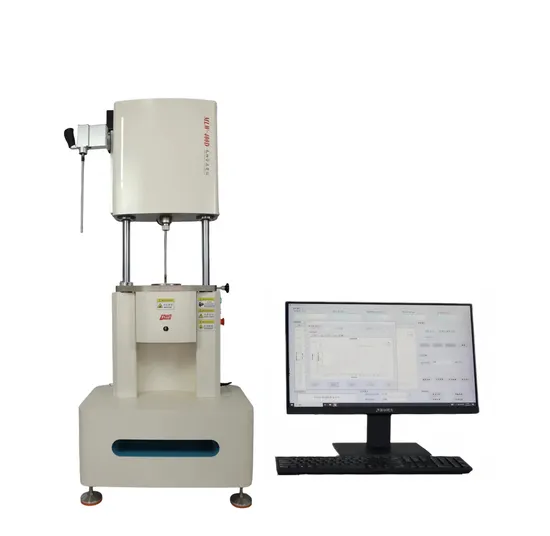

Capillary rheometer MLW-400D Application area 1. The MLW-400D is meticulously crafted to align with the rigorous 'capillary' specifications outlined in ISO 11443 and HG/T 4300-2012 standards. A marvel of precision, this sophisticated machinery is indispensable for assessing the shear rate and flow behavior of plastics and polymer substances. It operates seamlessly under controlled temperatures, delivering precise measurements of melt flow under shear stress, and accurately determining the apparent viscosity of thermoplastics to ensure unmatched performance.
2. As a powerhouse of technological innovation, this intelligent capillary rheometer offers unparalleled versatility and adaptability. Capable of functioning seamlessly under constant pressure, velocity, or temperature, it accommodates various heating rates and shear rates. Its advanced software ensures automatic determination of critical parameters, such as pressure and temperature, tailored specifically to different plastics and die diameters. Efficiently, it generates and archives precise data curves for comprehensive analysis.
3. Tailor-made to meet specific needs, this rheometer can be customized in diverse configurations such as low or high-temperature models, varying pressures, and rod diameters. This customization ensures it perfectly suits user requirements, offering maximum flexibility and tailored solutions for every unique application.
Detailed Photos System composition The design of the system structure incorporates a 'mouth'-shaped frame, a testament to its robust structural integrity and innovative design. Its streamlined aesthetics exude elegance, while embodying cutting-edge technology. The transmission mechanism, powered by a Taiwanese precision ball screw, ensures dual kinetic energy body movement, enhancing both operational stability and precision during tests.The speed control system boasts a high-precision AC servo mechanism, ensuring meticulous displacement and pressure control with unparalleled accuracy.e. The heating unit employs advanced spiral heating wire technology for uniform barrel heating, while an innovative movable furnace design allows for effortless cleaning following experimentation. The cutting-edge measurement and control system offers wireless remote capabilities for mobile preloading, enhancing user convenience. The intuitive software interface facilitates easy test mode configuration and real-time display of curves and calculation results, streamlining the user experience.
Product Parameters

Temperature range	Room temperature~400ºC	Heating rate	1-10ºC/min,Continuously adjustable, and rapid heating
Temperature measurement display accuracy	0.1ºC	Pressure range	1-100MPa±0.5%
Maximum driving force	10KN ,20KN(Can be customized according to customer requirements)	Pressure measurement accuracy	±0.5%FS
Pressure resolution	0.1Mpa	Velocity range	0.01-500mm/min
Deformation measurement accuracy	±0.5%FS	Plug diameter	φ12 mm(Can be customized according to customer requirements)
Plug area	113.04mm2	Discharge die specification	Discharge die specification
Discharge die material	Tungsten carbide	Power supply	Power supply

Certifications
Company Profile Changchun Intelligent Instrument Equipment Co., Ltd. stands as a beacon of technological prowess, seamlessly merging R&D, production, sales, and service since 1989. With 35 years of industry leadership, we are pioneers in China's testing machine landscape. Our expertise spans the development of cutting-edge optomechanical and electrical integrated testing instruments, analytical instruments, and automotive parts testers. Proudly ISO9001 certified, we consistently commit to excellence and innovation.
As a high-tech enterprise, Changchun Intelligent Instrument Equipment Co., Ltd. champions progressive design methodologies, leveraging its distinctive design and development prowess. Adhering to an array of national and international standards, including those from Germany, America, and Japan, we have innovated over a dozen state-of-the-art testing, analytical, and automotive part instruments, setting new benchmarks for quality and performance.
