Durable High Viscosity Mixer for Lithium Battery Applications

Product Description

Product Description: Discover the exceptional capabilities of our High Viscosity Mixing Equipment, designed specifically for manufacturing robust lithium battery solutions. Engineered with precision, this equipment promises to revolutionize your production process by delivering consistency, efficiency, and superior mixing performance.

No.	Item	Equipment configuration
1	Equipment appearance	Stainless steel
2	Mixing paddle motor	Inverter-fed motor
3	Dispersing motor	Inverter-fed motor
4	Control system	International brand
5	Frame structure	Gantry
6	MES interface	Standard configuration
7	Spray system	Optional
8	Automatic temperature control system	Optional (customer needs to specify configuration) cold and hot water
Note: If there are special requirements or additional/reduced items (such as adding/reducing pipe openings), please provide additional explanations. The main switch power cord of the equipment inlet box and the hot and cold water pipes connected to the mixing tank interface can be prepared by the customer themselves.

Working principle

This equipment adopts intelligent control through a control panel or central control system, and can automatically operate according to the prepared mixing process flow; Equipped with two spiral mixing paddles and two sets of serrated dispersing discs, driven by a dual planetary structure, it can meet the efficient mixing of various powders and liquids. Through processes such as stirring and dispersion, the particle size, uniformity of particle distribution, and consistency of viscosity can be controlled; At the same time, the mixing bucket has the functions of quick replacement and vacuum sealing. By vacuuming, bubbles in the slurry can be eliminated; So as to meet the requirements of mixing and slurry forming processes.

Equipment composition

Vertical column structure, transmission part, sealed container, lifting system, control system, etc.

Equipment Capability: Our state-of-the-art mixing equipment excels in handling high viscosity materials, ensuring optimal blending for lithium battery production. With advanced features, it caters to the demanding requirements of modern manufacturing, elevating your production quality and output efficiency.

Slurry production	Viscosity: 1,000 ~100,000 MPa.s, solid content is applicable to 30%~70%, and 85%~100%
Equipment failure rate	2%
Equipment bearing temperature	7ºC ~80ºC, the customer needs to provide the circulating cold and hot water
Temperature measurement accuracy	± 2ºC, the customer to provide circulating cold and cold water
Effective load of mixing paddle	>=3Nm/cm²
Applicable powders	PVDF, CMC, conductive agent, lithium iron phosphate, lithium cobalt acid, ternary, graphite, etc
Applicable solvent	And NMP, deionized water, etc
Applicable additives	SBR, CNT class
Vacuum pressure	Static 12H vacuum leakage rate is 10%
Not applicable:	Acetone solvent
Special reputation:	The requirements for powder feeding in the container of this equipment are: -20 kpa- + 20 Kpa. The vacuum system of this equipment is only applicable for the slurry and bubble removal function

Structural Decomposition Diagram: Gain insights into the intricate design of our mixing equipment. The structural decomposition diagram details each component's role, showcasing how their synergy contributes to unmatched performance and reliability. Explore the blueprint of innovation driving your business forward.

Gantry frame
2. Mixing tank
3. Mixing paddle
4.Feeding end
5.Power Distribution Cabinet
6.motor

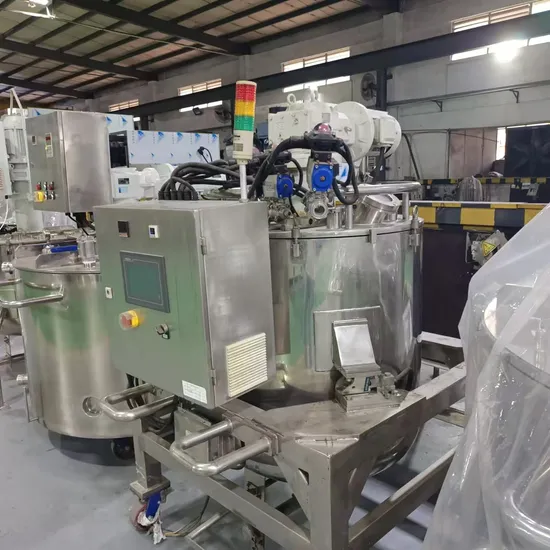

Part of Project Case Presentation: Be inspired by our successful project case presentations that illustrate real-world applications and the transformative impact of our mixing equipment. Witness how our solutions have propelled clients to achieve new heights in lithium battery production.
After Sales Service: We pride ourselves on providing unparalleled after-sales service to ensure your peace of mind. Our dedicated support team is ready to assist you with any inquiries, maintenance needs, or upgrades, guaranteeing your operations remain smooth and uninterrupted. If I place an order, what is the usual delivery time? Our streamlined production processes ensure a prompt delivery, allowing you to plan your operations with confidence and minimal downtime. -About 45-60 days: Expect reliable delivery within 45-60 days, ensuring you receive your equipment on schedule and ready to integrate into your production line. How do you meet my needs: We are committed to customizing our solutions to fit your unique requirements. By understanding your production capacity and specific mixing materials, we deliver tailored solutions that align perfectly with your goals.To meet your needs, share your production capacity, the materials you mix, and any specific requirements. We will craft a bespoke solution and establish a dedicated engineering team for seamless communication, ensuring a smooth and stress-free experience throughout the entire process. Can you provide on-site installation and debugging services? Rest assured, we offer comprehensive on-site services to assist you. Our expert engineers will guide the entire installation and debugging process, ensuring your equipment operates flawlessly from day one.
Yes, our company can send engineers to your local workshop to guide installation and commissioning, provide training, and accompany production. Experience seamless integration and operation with our hands-on support, backed by expertise and dedication.

---
