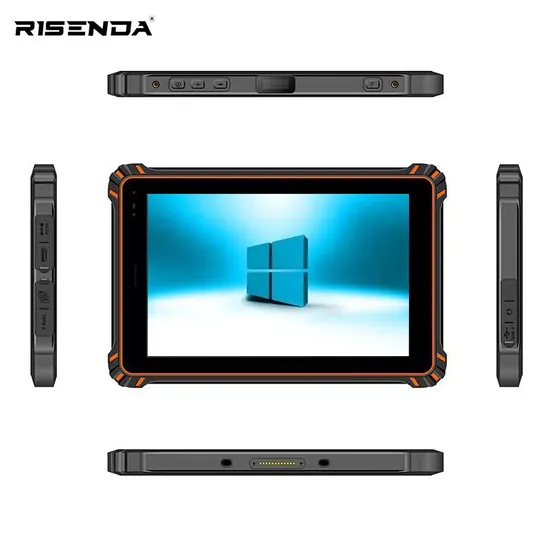

Wholesale Windows Version 8 Inch 3 Proof Rugged Tablet with Dock Station

Product Description

Spec		Standard	Option
Physical Spec	Dimension	227*142.4*22.9mm
	Color	Black	Could Customize color
Platform Spec	CPU	Intel cherry trail Z8350, 1.44GHZ~1.92GHZ
	RAM	4GB	2GB,6GB
	ROM	64GB	32GB,128GB
	OS	Windows 10 Home	Pro,IOT
	Battery	8500mAh,3.8v lithium- ion battery,Removable, endurance 8h(1080P Video + LCD 50% Brightness)
	Indicator	*1
	Camera	Front Camera:2MP,
		Rear Camera:5MP
	2G/3G/4G	LTE FDD: B1/B3/B5/B7/B8/B20; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM: B3/B8
	Location	U-Blox M7N GPS,Bei Dou,
	WIFI	WIFI 802.11(a/b/g/n/ac) 2.4G+5.8G
	Bluetooth	Bluetooth 4.0 (BLE) class1 transmission range:10m
	Adapter	5V/3A(DC Port)	5V/3A(CONINVERS)
Display	Resolution	800*1280,8 inch IPS LCD,16:10	800cd/m²(1200*1920)
	Brightness	450cd/m²	1000cd/m²(800*1280)

	Touch panel	GT9110P,5 Points Touch/ Max 10Points Touch	Wet hand touch, glove touch Active/passive capacitor pen
	Glass	Corning Gorilla third generation glass, hardness 7H	AG+AF Coating , AR Coating
Key	Power	*1
	Volume	*2,Vol+,Vol-
	Self-define key	*2,P-Key,F-Key
Voice	Speaker	*2, 1.2W/8Ω, IP67 Water proofing;
	Receiver	*1,IP67 Water proofing
	MIC	*2,MIC,IP67 Water proofing
Port	USB1	*1,Type-C USB2.0 Support OTG
	USB2	*1,Type-A USB2.0
	Ethernet	*1,RJ45, 100Mbps
	DC	*1,DC 5V/3A,
	HDMI	*1,Mini HDMI
	Earphone	*1,3.5mm Standard earphone
	CONINVERS	*2,	RS232/USB/DC5V/CAN BUS
	Pogo Pin	*1,,1pin USB+ Charging
	SIM card	*1,Standard Micro SIM Slot
	TF card	*1,Max Support 256GB
Sensors	G-Sensor	OK
Extension Module	NFC	/	13.56MHZ Support:14443A/14443B/15693
	HF RFID	/	13.56MHZ Support:14443A/14443B/15693
	UHF RFID	/	PR9200,Read distance:1.5M-3M: Read distance 2:5M-8M
	ID	/	Standard 2th Generation
	Fingerprint	/	1: ordinary industrial fingerprint 2: Fingerprint authentication by the Ministry of Public Security 3: FBI certified fingerprint
	1D Scanner	/	Zebra SE655
	2D Scanner	/	Zebra SE2707
Reliability	IP Protection Level	IP67
	Drop test	1.2M,Cement floor

	Working temperature	-20ºC~60ºC
	Storage temperature	-30ºC~70ºC
Certification	CE	OK
	RHOS2.0	OK
	IEC62133	OK
	Air and sea survey report	OK
	IP67	OK
	GMS	OK
	MSDS	Ok
	UN38.3	Ok
Accessory	Hand strap	/	Option
	Mounted bracket	/	Option
	Standby Battery	/	Option
	Docking	/	Option
	Type-C Cable	/	Option
	OTG Cable	/	Option

Product application field
1.Storage industry, including: forklift intelligent management,
LG factory data inventory management,
small and medium-sized storage data management,
intelligent storage picking system.
2.Surveying and mapping engineering, including outdoor surveying
and mapping solutions and engineering construction solutions.
3.Service industry, including: golf course intelligent management,
clothing chain brand advertising machine management.
4.Public utilities, including fire control management
of fire brigade and geological disaster early warning system.
5.Transportation industry, including: fleet intelligent management, highway haze penetration vision system,
vehicle detection and diagnosis solutions, and railway maintenance inspection management.
6.Energy industry, including oilfield equipment patrol management and electric power patrol management.
7.Agriculture and forestry industry, including forestry timber transportation management.
8.Manufacturing industry, including: furniture manufacturing enterprise production process management,
machine vision inspection system, CNC machine tool intelligent manufacturing system,
paperless chemical plant solutions
Smart clothing factory electronic signage solution, air conditioning and ventilation equipment management,
copper mining car intelligent management.
9.Communication industry, including communication base station management.
10.Medical industry, including: intelligent management of medical rehabilitation devices,
mobile ultrasonic diagnosis system, remote ECG real-time monitoring system.
11.Logistics industry, including logistics robot mobile solutions.
12.Material quality inspection, including hardness measurement solutions.

---
