Product Description
Product Description

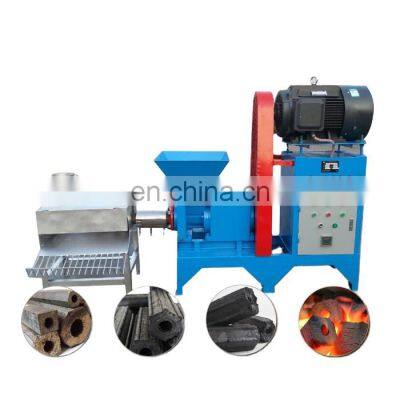

High Efficiency cylindrical automated briquetting machines for wood
GCBA-I briquetting machines for wood is a screw type briquette machine. This mini briquetting machines for wood is designed with automatic temperature control system. It can make various kinds of biomass materials into hollow quadrangular or hexagonal. The hole is 15-20mm through the briquettes. This screw type small briquette machine is capable of densifying wood wastes and agricultural residues (moisture less than15%). With is small briquette machine, biomass wastes can easily be turned into high value solid fuel briquettes which can be used for heating or other energy applications.
ModelGCBA-Ⅰ- briquetting machines for wood
| Shapes of briquettes | Hollow Quadrangular or Hexagonal |
| Output capacity kg/h | 180-210 |
| Motor Power (kw) | 18.5kw |
| Electric heater (kw) | 5kw |
| Size of briquettes | Dia.50mm |
| Size of inside hole | Dia.16mm |
| Density of briquettes | 1.3 g/cm3 |
| Weight(kg) | 560kg |
| Warranty | 12 Months |
| Overall dimension(mm) | 1600*1000*1000 |
Click Now for Catalogs & Factory Price!
The briquetting press machine in production lineBriquetting press machine is a project that turns agricultural and forestry wastes into biomass briquettes. The best home screw mini briquetting machines for wood is composed of different steps of equipments, such as wood chipper, crusher/hammer mill, dryer, small briquette machine, cooler, packager and the conveyor connecting each step. If necessary, it needs carbonization device like carbonization furnace to carbonize the wood briquettes into charcoal.
Click Now for Catalogs & Factory Price!Factory price briquetting machines for woodMaterial with briquetting machines for woodRaw material used in briquetting machines for wood: manure peper, grain husk, peanut shell, cotton rod, wood chip, sawdust, branch, bark, bamboo powder, wood timbering, forest residual and household refuse, etc. It could be made into briquettes through mini briquetting machines for wood after being crushed. Keep the moisture of the feedstock at around 15% and size less than 20mm (peanut shell needs no crush, while the wood chips should be crushed into 3-5mm) when using the biomass charcoal mini briquetting machines for wood.
Click Now for Catalogs & Factory Price!Final prroduts by mini briquetting machines for wood
Click Now for Catalogs & Factory Price!Parameters of screw small briquette machine
ModelGCBC- IGCBC-IIAGCBC-II
| Input Raw Material Size (mm) | 3-5mm | 3-5mm | 3-5mm |
| Output Capacity kg/h | 180-210 | 300-350 | 300~350 |
| Shapes Of Briquettes | Φ=40mm, 50mm, 60mm, 70mm |
| Motor Power (kw) | 15kw, 380v, Six Grades | 18.5kw, 360v, 6 Grades | 22 kW |
| Electric Heater (kw) | 2.2kw*2 | 2.2kw×2 | 5 kw |
| Heating Range | 280~350℃ | 280~350℃ | 280~350℃ |
| Life of The Inner Former | 1-2years | 1-2years | 1-2years |
| Size of Briquettes Inside Hole | Dia.16mm | Dia.16mm | Dia.18mm/16mm |
| Density of Briquettes | 1.3T/m³ | 1.3T/m³ | 1.3T/m³ |
| Weight(kg) | 700kg | 800kg | 780 kg |
| Overall Dimension(mm) | 2700*600*1600 mm | 2000*600*1700 | 1500*1200*1600 |
| Raw Material Moisture Requirements | 8~10% | 8~10% | 8~10% |
Click Now for Catalogs & Factory Price!briquetting machines for wood working principleBriquetting is a process that biomass is compressed under high pressure and high temperature. The small briquette machine uses a large screw to grind the biomass into briquettes that are of uniform composition.
The self bonding of biomass to form a briquette involves the thermo-plastic flow of the biomass. The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process machine, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes produced by mini briquetting machines for wood is 1300kg/CBM.
Click Now for Catalogs & Factory Price!briquetting machines for wood project
Click Now for Catalogs & Factory Price!Characteristics of briquetting machines for woodScrew briquetting press machine can produce both wood briquettes and charcoal briquettes.Screw mini briquetting press machine main parts adopts high hardness alloy steel, which prolongs the service life.The gear box is equipped with lubrication device, which makes it be lubricated regularly.The automatic cutting system of screw briquetting machines for wood makes sure the uniform length of briquettes.Tetragon and hexagon briquettes or charcoal briquettes with hole produced by screw small briquette machine are easy to burn completely with little ash, improving the combustion efficiency.It is convenient for the end products of screw briquetting press machine to store, transport for their regular shapes.The screw briquetting press machine has the advantages of stable running, continuous production and flammable property (because the charcoal briquette is hollow and the surface has carbide layer), etc.
Click Now for Catalogs & Factory Price!Why choose GEMCO small briquette machine
Click Now for Catalogs & Factory Price!Customers visiting
Click Now for Catalogs & Factory Price!We can accept enquiry of our briquetting machines for wood from all over the world, only you have a heart to build a blueprint in biomass energy, pls contact us immediately. We can give you a hand during the dream-realized process.
