US$22,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Petroleum Machinery Manufacturing, Aerospace Industry, Automotive Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Machine Tool
Laser Classification
Fiber Laser
Laser Technology
Laser Control Fault Cutting
Support Tube Shapes
Round Square Rectangle
Cutting Thickness
According to Laser Power and Materials
Laser Head Brand
Raytools
Servo Motor Brand
Weihong
Transport Package
Wooden CAS
Specification
2700x1200x1950mm
Production Capacity
50set/Month

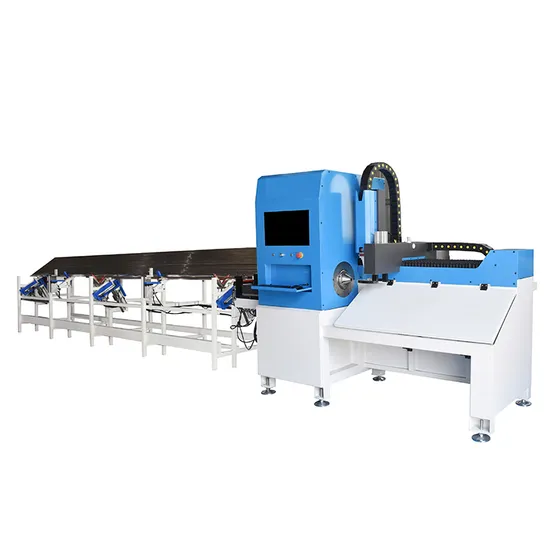

Product Description
Product Description
1,The front and rear of machine are powered to rotate, so pipe does not appear to be slipped and injured when cutting stainless steel round pipe.
2,There is no slenderness ratio 60:1 limit when cutting 6m pipe.
3,The X direction is driven by rack and pinion, the speed is faster than the running speed of the screw.
4,It is double chuck rotation, tube will not lag, and the quality of cut product is good.
Parameters
|
Power of laser
| 1.5kw
|
Cutting length
| 6000mm
|
Round pipe
| φ3-φ80mm
|
Square
| 60x60mm
|
Power of laser
| 1.5kw
|
Chuck rotation speed
| 150r/min
|
Positioning accuracy
| ±0.05mm
|
Repeat positioning accuracy
| ±0.05mm
|
Maximum idle speed
| 120m/min
|
Maximum acceleration
| 1.0G
|
Minimum length of tailstock
| ≥50mm
|
Maximum weight of a single tube
| ≤50kg
|
Main machine measure
| 2700×1200×1950mm
|
Measure with feeding frame
| 8300x1200x2100mm
|
Weight
| 4200kg
|
Configuration
|
Fiber laser cutter
| Osprey
|
Speed Reducer
| Shinbo Tomokawa Precision
|
Control Software
| Weihong
|
Servo motor and driver
| Weihong
|
Electrical Control
| Eaton
|
Cut off air circuit electrical
| SMC/Air TAC
|
Water-cooled united
| standard
|
>>
