2023new Ice Cream Cone Sleeve Machine

Product Description

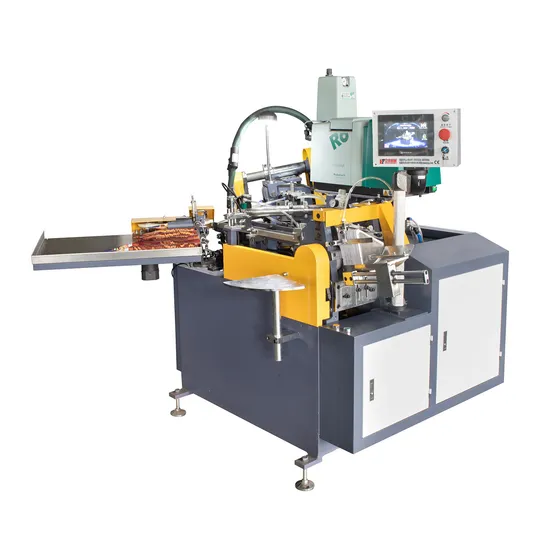

Introduction of CPC-220
CPC-220 automatic paper cone sleeve machine is made for ice cream and other similar paper cone sleeve .This machine can shape angles from 17°- 25°,(Through the way to change the mould) ,high speed from 190-230pcs/min , can use different paper material like art paper ,aluminized paper ,offset paper etc., major parts of this machine used famous international brand like Schneider.Panasonic, Robatech etc.
Features
1.This water cone cup machine can make ice cream cone cup angle between 17°-25°, and line from 11 - 25cm .
2.Past CE and SGS.
3.It is equipped with micro-computer controlled system ,which make this machine well controlled .
4.Fast speed 190-230pcs/min.
5.Most parts of this equipment is well-know brand as Schneider.Panasonic, Robatech and etc.Can get the guarantee in the world .
6.Its photoelectric tracing system provide automatic alarm and stop .
Main Parts Brand
PLC:Mitubishi
Glue box:Robatech
Vacuum pump:Huitong
Transducer:Schneider
Sensor:Omron
Electrical parts:Schneider+ Panasonic
Mail technical parameters

GENERAL POWER	9kw
PAPER REQUEST	80-170g/ m^2 art paper/ aluminized paper/ offset paper/ wax paper, etc
POWER SUPPLY	220V50Hz/ 380V50Hz OR CUSTOMIZED
CUP SIZE	4-10OZ
SPEED	190-230PCS/MIN
ANGLE DEGREE	17-25 degree
CONE LINE	Min 110mm- Max 250mm
WEIGHT	1000kgs
DIMENSION	1850*1750*1800mm

FACTORY VIEWE
Ruian Lifeng Machinery Co., Ltd (old name:Ruian Sincere Machinery Co., Ltd.) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc.Especially the water cone cup machine, we get the patent in China.And all of our products have past CE, SGS.In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy".Welcome the clients at home and abroad to negotiate and cooperate.
Q1.Are you trade company or factory?
We are factory, not trade company
Q2.Where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province.China
You can by plane from your country to wenzhou city airport, then we will pick you up by car.
Q3.What certification do you have?
We have CE, BV and SGS certification.
Q4.What is your delivery time?
Our mahcine need 25 -30 days in normal, if your order is urgent, we can descuss aout that.
Q5, what is the HS code?
Our machine HS code is 8441309000
Q6, when the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
Secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
Thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
Forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory.
Q7, what is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine,

---
