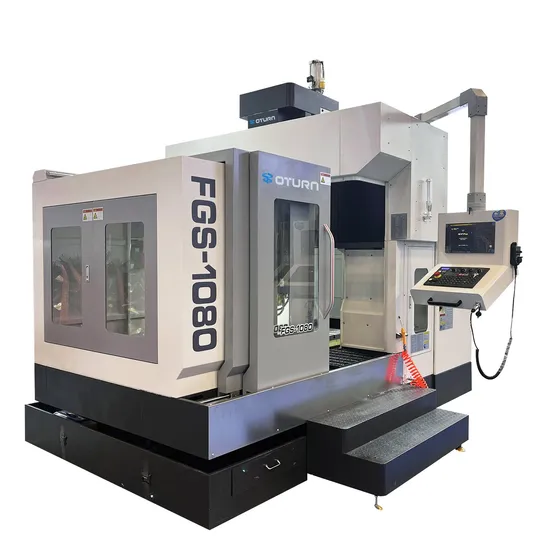

Oturncnc Gantry Type Machining Center Milling with OEM/ODM Service (FGS1080)

Product Description

Product Description
High-speed gantry machining center by large torque spindle and ultra-high rigidity structure design, endowed this series with outstanding heavy-duty cutting ability, any want to improve the chip removal rate, reduce the machining cycle, or a variety of difficult to cut materials machining problems, can be easily overcome by FGS series machining center.
The optimized slide rail is equipped with a high-specification four-slide rail base and a three-slide rail crosshead, so that the structural rigidity, load capacity and precision stability of this series surpass other similar models on the market.
The flexible five-face machining module can be upgraded to a five-face machining machine with an optional automatic tool changer and a vertical and horizontal tool change system.
Excellent eyebrow removal and cooling capacity, equipped with two spring-loaded eyebrow lifters and iron eyebrow conveyor as standard, excellent chip removal efficiency. The 1000L large-capacity water tank can effectively suppress the thermal temperature rise of cutting fluid and ensure machining accuracy.
Product Parameters

Specifications/model	unit	FGS-1080
Processing range
X-axis travel (front and rear)	mm	1000
Y-axis travel (left and right)	mm	800
Z-axis travel (up and down)	mm	500
Distance from spindle nose to work surface	mm	150-650
Gantry width	mm	1030
Workbench specifications
Table size (X × Y axis direction)	mm	900 × 800
Max. load of workbench	kg	800
T-slot	mm	5-18*125
Spindle specifications
Spindle speed	rpm	15000 /Direct
Spindle taper		HSK-A63
Spindle motor	kw	11
Feeding system
G00 rapid traverse (X/Y/Z axis)	m/min	X/20 Y/Z/30
Cutting feed movement	m/min	1-30
Repeatability JIS B6338-1985	mm	±0.003
positioning accuracy JIS B6338-1985	mm	±0.005/300
motor
Three axis motor	kw	X/ Y/Z 3KW
Lubricate motor	kw	0.025
cutting motor	kw	0.46
Machine weight	kgs	8000
Machine size	mm	3500*2320*3100
Tool change time	s	2.5

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
2.lf need ClF Price, please kindly tell us the port of destination.

---
