Manual Drilling Machine Vertical Machine for Metal

Product Description

Product Features
. Auto feed system
. Driling and Tapping
. Attractive and well placement design
. Solid structure, high rigidity
. Work table can turn 360°
. Long spindle travel
. Wide machining range
. Wide speed range
. Manual and automatic switching
Product Parameter

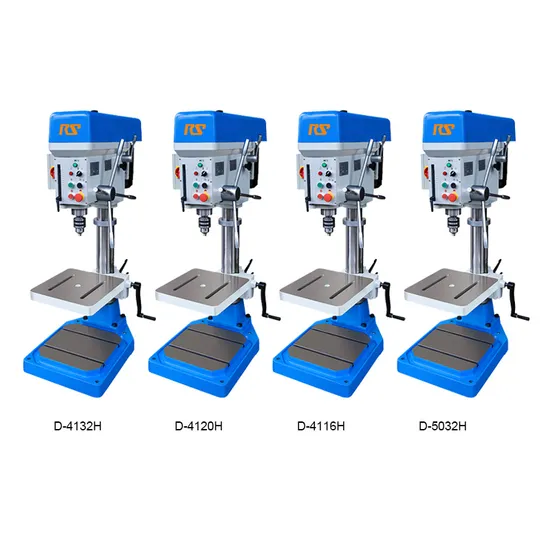

Model	AD-4132H AD-4132HP	AD-4120H	AD-4116H	AD-5032H AD-5032HP
Max.Drilling Capacity (mm)	31.75(steel)	20/16	16(steel)	31.75(steel)
Max.Tapping Capacity (mm)	M20(steel)	M20(cast)/M16(steel)	M12(cast)/M10(steel)	M20(steel)
Distance spindle axis to column genetating line (mm)	265	240	193	265
Spindle travel (mm)	manual 150 auto 105	manual 135 auto 75	manual 100 auto 75	manual 150 auto 105
Max.Distance spindle nose to table (mm)	390	366	330	820
Max.Distance spindle nose to base (mm)	745	678	613	1235
Diameter of column (mm)	100	85	70	100
Spindle speeds range (r/min)	320-1820	340-2180	320-2730	320-1820
Spindle taper	MT3	MT2	MT2	MT3
Dimension of worktable surface (mm)	380*400	300*320	265*285	380*400/330*330
Motor (kw)	1.5	1.1	0.75	1.5
Net weight (kg)	238	183	153	310
Packing dimension (mm)	1040*640*1510	990*590*1400	850*540*1280	1040*640*2050
Max.feed rate(mm/min)	113	109	110	113

FAQ
1.What models do you have?
There are many types of drilling machines, and we can recommend them according to your needs.
The best-selling series is Bench Drilling Machine and Bench Auto Feed Drilling Machine.
2.Do you have CE certification?
Yes, we have CE . The quality of the machine is guaranteed.
3.Can you accept OEM orders?
Of course, we can accept OEM with your trademark printed on the machine and pack it according to your design.
4.What products does your company provide?
Main products is riveting machine,tapping machine,drilling machine,self-clinching fasteners and so on.

---
