High-Performance Diesel Concrete Batching Plant Mixer for Construction

Product Description

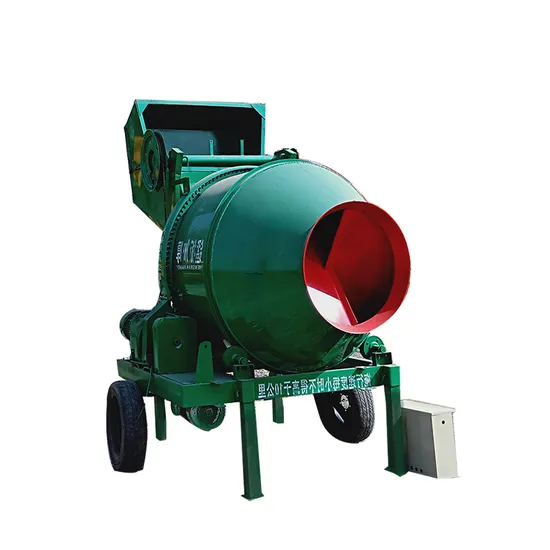

Concrete Mixer - Self-Dumping Mixer Brief Introduction: It is a middle capacity self-dumping mixer. Heavy duty channel chassis provides durability and stronger support in the areas where you need it. Jack legs give maximum stability throughout the mixing cycle. Towable chassis with pneumatic tyred wheels. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available. Power source: diesel engine. So it can also be used in areas without electricity supply. Features: Adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature stable. Removing the air sucking point from the back to the front reduces dust intake, prolonging the service life of the engine. Compact structure for higher reliability. Mixes concrete evenly with a big capacity. Easy operation and easily movable between sites. Specifications: The concrete mixer is of bigger capacity, self-falling type. Suitable for mixing plastic and low-slump concrete. Aggregate size required to be smaller than 60 mm. The drum revolves for mixing and reverses for discharging. Rated output capacity: 0.50 cubic meter. Widely used in building sites, road and bridge projects, and many other construction sites. For more information, please contact Shandong Ucarry Machinery Co., Ltd.

Model	JZR350
Capacity of discharging	350L
Capacity of loading	560L
Drum rotating speed	14.5r.p.m
Power source	Diesel
Powered	13.34kw
Tyre size	7.00*16
Hydraulic system	Pressure of system	120Mpa
	Control valve	3 Stone manual valve
	Working pressure	80Mpa
Hydraulic cylinder	Hydraulic cylinder piston diameter	50mm
	Hydraulic cylinder diameter	90mm
	Stroke of hydraulic cylinder	720mm
Gear case	Mechanical gear box with friction clutch
Overall size	3100×2300×2500mm
Weight	1950kg
Mechanic transmission with hydraulic tipping system

Diesel Power Our diesel concrete mixer is powered by a reliable diesel engine, making it suitable for use in areas without electricity. It is a versatile construction equipment that can be used for various projects, including concrete batching plants and construction sites. With a 1-year warranty and online customer support, our diesel concrete mixer is a reliable choice for all your construction needs.
Tipping Hopper The hydraulic tipping hopper from Shandong Ucarry Machinery Co., Ltd. is a reliable and efficient solution for aggregate feeding. It can be used with our diesel concrete mixer, construction equipment, and concrete batching plant. With a 1-year warranty and online after-sales service, this concrete mixer is a top choice for any construction project.
Water Pump
Introducing a water pump to facilitate water circulation between the water tank and water radiator, ensuring a stable water temperature.
Gear Ring By observing the oil pressure gauge, you can determine if there is any oil leakage or if the pressure is too high. The Gear Ring, manufactured by Shandong Ucarry Machinery Co., Ltd., ensures the normal operation of your machinery.
5. Operating Handle
The operating handle of our product, manufactured by Shandong Ucarry Machinery Co., Ltd., has been designed with convenience and longevity in mind. By relocating the air sucking point from the back to the front, it effectively reduces the amount of dust being sucked into the engine. This not only ensures a cleaner working environment but also helps to extend the service life of the engine. With our operating handle, you can expect improved performance and durability.
packing & shipping

---
