Inventronics 400W 500W 600W 650W 680W 700W Dimmable LED Driver for Grow Lights

Product Description

Product Parameters
Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range	Output Voltage Range	Max. Output Power	Typical Efficiency (2)	Power Factor		Model Number (3) (4)
							120Vac	220Vac
0.125-1.7A	1.25-1.7A	1.7 A	90~305 Vac/ 127~300 Vdc	200 ~ 544Vdc	680W	95.5%	0.99	0.96	EUM-680S170MG
0.18-2.4A	1.8-2.4A	2.1A	90~305 Vac/ 127~300 Vdc	141.5 ~ 378Vdc	680W	94.5%	0.99	0.96	EUM-680S240MG
0.26-3.5A	2.6-3.5A	3.5A	90~305 Vac/ 127~300 Vdc	97.1 ~ 262Vdc	680W	95.0%	0.99	0.96	EUM-680S350MG
0.42-5.6A	4.2-5.6A	5.6A	90~305 Vac/ 127~300 Vdc	60.7 ~ 163Vdc	680W	94.5%	0.99	0.96	EUM-680S560MG
0.63-8.4A	6.3-8.4A	8.4A	90~305 Vac/ 127~300 Vdc	40.4 ~ 108Vdc	680W	95.0%	0.99	0.96	EUM-680S840MG (5)
1.26-15.0A	12.6-15.0A	15.0A	90~305 Vac/ 127~300 Vdc	22.6 ~ 54Vdc	680W	95.5%	0.99	0.96	EUM-680S15AMG (5)

Notes:
(1) Output current range with constant power at 680W.
(2) Measured at 100% load and 220Vac input (see below "General Specifications" for details).
(3) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac
(4) x = G are UL Recognized, ENEC and CCC, etc. models; x = T are UL Class P models.
(5) SELV output
Product Description
Fetaures: Ultra High Efficiency (Up to 96%)
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with Programmability
Isolated 0-10V/PWM/3-Timer-Modes Dimmable
Adjustable Dimming Curve
INV Digital Dimming, UART Based Communication Protocol
Dim-to-Off with Standby Power ≤ 0.5W
Minimum Dimming Level with 5% or 10% Selectable
Hold Time Adjustable
Fade Time Adjustable
Always-on Auxiliary Power: 12Vdc, 250mA
Low Inrush Current
Output Lumen Compensation
End-of-Life Indicator
Input Surge Protection: DM 6kV, CM 10kV
All-Around Protection: IOVP, IUVP, OVP, SCP, OTP
IP66/IP67 and UL Dry/Damp/Wet Location
TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
5 Years Warranty

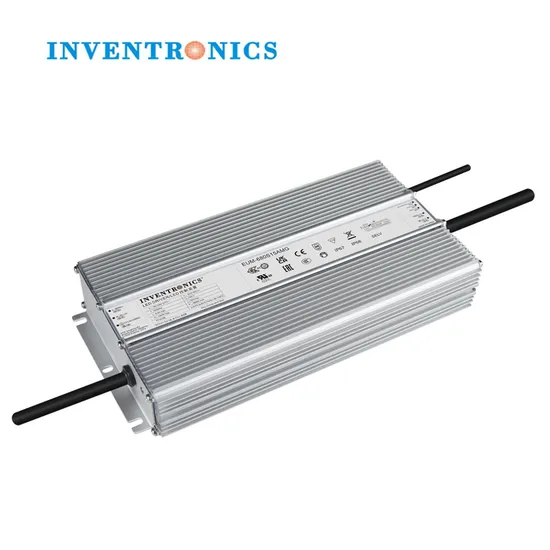

Descriptions: The EUM-680SxxxMx series is a 680W, constant-current, programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for many lighting applications including high mast, sports, UV-LED, aquaculture and horticulture, etc. It provides an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports 0-10V dimming as well as two-way communication via Digital Dimming, a UART based communication protocol. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.
