Jyp290vf Combination Mill Drill Turning Machine Multi Function Lathe Machine

Product Description

Product Description
Products Description:

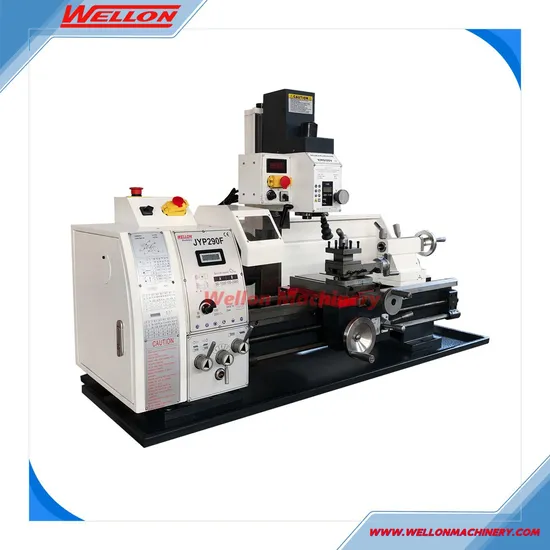

JYP290VF combination mill drill turning machine multi function lathe machine
Performence Features:
Most popular, widely useful combination machine.
V-way bed is hardened and precision ground.
Adjustable height head gets greater capacity.
MT4 spindle hole gets greater capacity
Spindle is supported by high precision bearing.
T-slotted cross slide.
Power longitudinal feed allows threading.
Adjustable gib for slideways
Right and left hand threads cutting is available.
Spindle feeding handle with softgrip for perfect operation.
Tailstock can be off set for turning tapers.
Geared mill head gets more torque.
Mill head can be tilted +/-90 degree
Tolerance test certificate, test flow chart included. Product Parameters
Technical parameter:

Model	JYP290VF
Distance between centers	700mm
Swing over bed	290mm
Swing over cross slide	170mm
Spindle bore	38mm
Taper of spindle bore	MT5
Number of spindle speed	Variable speed
Range of spindle speed	80-2000rpm
Range of cross feed	0.01~0.10mm/rev
Range of longitudinal feed	0.085~0.832mm/rev
Range of inch thread	8-56TPl
Range of metric thread	0.2-3.5mm
Top slide travel	70mm
Taper of tailstock quill	MT3
Motor	1.5KW
Max. Drilling Capacity	20mm
Max. Face Milling Capacity	63mm
Spindle Taper	MT2
Spindle Speed	50-2250rpm
Distance From Spindle to Column	380mm
Motor	750W
N.G weight	290/310kg
Packing size	1450×770×1060mm

Standard accessories :
Change gears,
Oil tray,
Splash guard,
3-jaw chuck,
Dead centers,
Oil gun,
Some tools
Optional accessories :
Steady rest
Follow rest
Face plate
Turning tools
Quick change tool post
4-jaw chuck
Live center
Drill chuck
Stand base
Collet chuck kits
2 axis DRO Company Profile
