High Quality CNC Laser Cutting Machine

Product Description

High Quality CNC Laser Cutting Machine
Descriptions

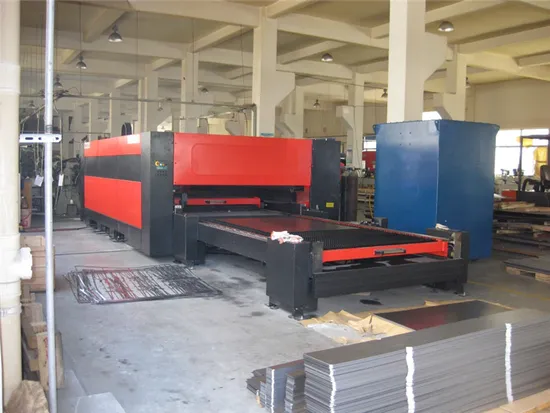

--ML series laser cutting machine is of flying optics structure and precision cutting.
--Its gantry-type cross beam features good rigidity and smooth drive.
--Exchangeable worktable is easy for loading and unloading material with high efficiency.
--This machine can cut mild steel, stainless steel, galvanized steel, plastic, plexiglass, timber etc.
Main Specification

		ML3015					ML4020
		Gantry Flying Optical Path
Machining Area		X 3000mm					X 4000mm
		Y 1500mm					Y 2000mm
		Z 100mm					Z 100mm
Max. Machining Weight		850kg					1300kg
Max. Positioning Speed		106m/min
Positioning Accuracy		0.06mm
Repositioning Accuracy		0.015mm
Max. Cutting Speed		20m/min
Laser Cooling		Closed Inner Circulation, Temperature Control
Laser		2000W 2500W 3000W 3300W 4000W
Laser		PANASONIC High Flow DC Excited CO2 Laser
Structure		Standard
Rated Power		2000W		2500W			3300W	4000W
Output		±2%
Wave		10.6μm
Laser Modal		TEMoo (Main)
Laser Gas		CO2:N2:He=1.7%:23.4%:74.9%(Balanced)
Input Power		23KVA		34KVA			40KVA	50KVA
Laser Gas Consumption		30L/h						40L/h
Max. Cutting Capacity	Carbon Steel	12mm		16mm			18mm	22mm
	Stainless Steel	6mm		8mm			10mm	12mm
Laser		PANASONIC, JAPAN					EASTERN LASER, NANJING
Rated Power		2000W	2500W		3300W	4000W	2000W	3000W
Max. Cutting Capacity	Carbon Steel	8mm	10mm		16mm	20mm	10mm	16mm
	Stainless Steel	4mm	6mm		8mm	10mm	5mm	6mm
Outline Size		8.2m					11.2m
		4.5m					4.8m
		1.9m					2.0m
		Guards & Operation Panel Included
Weight		10000kg					12000kg

Warranty and Service
-- One year warranty for whole press.
-- All spare parts are available as we produce most of the parts in our factory.
-- It is easy to get the electric parts as all are international famous brands.
-- We can provide technical support via email, phone or video.
-- We can send out engineers for service, installation or training with reasonable additional cost.
-- English operation and maintenance manual is provided with the press.
-- All safety warning tags and control panels are in English.

---
