XCMG Official Gtbz22s Aerial Lifting Platform 22m Secondhand Telescopic Boom Lift for Sale

Product Description

XCMG Official GTBZ22S Aerial Lifting Platform 22m Secondhand Telescopic Boom Lift for Sale

GTBZ22S is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheeldriven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate.
Product Parameters

Item	Unit	Parameter
Overall Length	mm	10150
Overall Width	mm	2490
Overall Height	mm	2800
Wheel Base	mm	2500
Maximum Working Height	m	23.7
Maximum Platform Height	m	22
Maximum Working Range	m	18.3
Maximum Load Capacity	kg	340
Boom Luffing Range	°	-5~+75
Rotation Angle of Rotating Platform	°	360
Maximum Tail Wagging	mm	1550
Platform Size	mm	2400×900
Rotation Angle of Platform	°	180
Total Weight	kg	12500
Maximum Travel Speed	km/h	6
Minimum Turning Radius	m	6
Minimum Ground Clearance	mm	230
Maximum Grade Ability	%	45
Rated Power of Engine	kW/(r/min)	43/(2600)

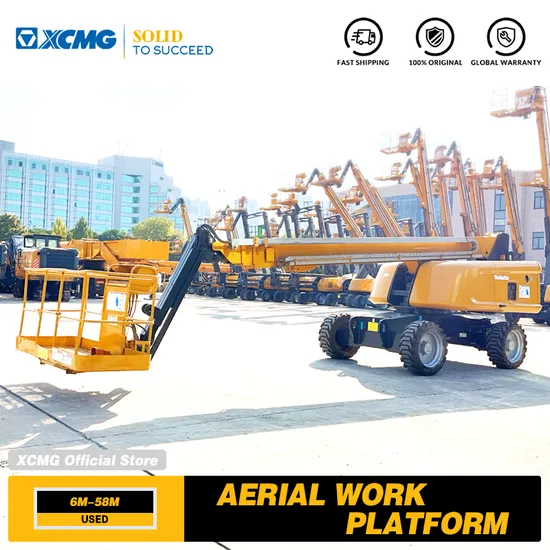

Product Picture
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
