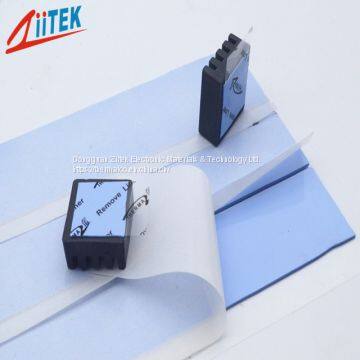

| Typical Properties of TIF5140S | |||
| Product Name | TIF5140S | ||
| Colour | BLUE | ||
| Construction & Compostion | Silicone thermal pads | ||
| Thermal conductivity | 3 W/mK | ||
| Hardness | 27 Shore 00 | ||
| Specific Gravity | 2.88 g/cc | ||
| Thickness range | 0.010"-0.200" (0.25mm-5.0mm) | ||
| Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ||
| Dielectric Constant | 5.5 MHz | ||
| Volume Resistivity | 6 X1013 Ohm-meter | ||
| Continuous Use Temp | – 20 To 125℃ | ||
| Outgassing (TML) | 0.30% | ||
| Flame Rating | 94 V0 | ||
