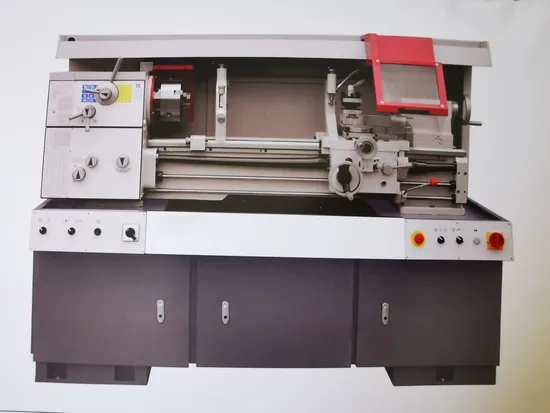

Ce Standard Horizontal Bench Metal-Working Lathe

Product Description

Min.Order Quantity:1 Set/Sets
Port:Shanghai
Payment Terms:T/T
Condition:New
CNC or Not:Normal
Automatic Grade:Manual
Place of Origin:Shandong, China (Mainland)
Brand Name:Weihao
Model Number: F3610/4010
Certification:CE
After-sales Service Provided:No overseas service provided
Delivery Detail:30-45days
Specifications
CE standard Horizontal Bench Metal-working Lathe

Description	F3610	F4010
Swing over bed	320 mm	400mm
Swing over cross slide	220 mm	260mm
Swing in bed bridge	520mm	560mm
Center height	180mm	200mm
Distance between centers	1000mm	1000mm
Travel top slide	95mm	95mm
Travel cross slide	175mm	175mm
Spindle speed	45-1800r/min	45-1800r/min
Spindle bore	40/51mm	40/51mm
Taper in spindle nose	MT.5	MT.5
Travel quill	120mm	120mm
Quill taper	MT.3	MT.3
Main motor	1.5KW/2.4KW (double speed)	1.5KW/2.4KW (double speed)
Net weight	850kgs	850kgs
Packing size(LxWxH)	2114x994x1657mm	2114x994x1657mm

Standard Accessories:
three jaw chuck
centers
thread chasing dial
chip tray
splash guard
toolbox&tools 1 set
Special Accessories:
coolant system
magnetic brake
PLC forward and reverse swtich
living center
taper turning attachment
drill chuck
stopper
QCTP
DRO
chuck cover
leadscrew cover
tool post cover
Features:
integrated metal cover
PLC control with touch keyboard
auto lubrication system
cross switch instead of forward and reverse level
embedded LED light

---
