Yantai Haige Bar Peeling Centerless Machine Made in China

Product Description

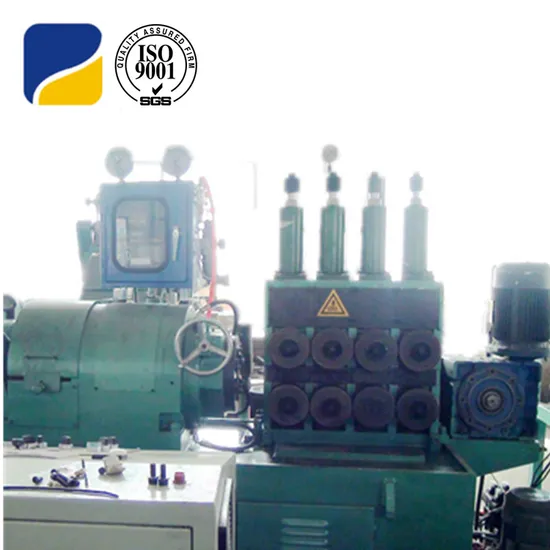

Automatic lathe peeling machine
Series WXC Centerless Lathe includes Semi-automatic hydraulic and CNC type.
The machine's features are as follows:
When processing over-length bar,centerless lathe has incomparable advantages.
Centerless Lathe is not only processing Bar,also Wire Rod.
Processing speed 1~12m/min,the working efficiency of centerless lathe is dozens of times of the ordinary lathe.
High Precision,after peeling,diameter tolerance can reach ≤h9,surface roughness(Ra)≤6.3μm.
Our product is suitable for processing all kinds of metal materials, such as steel tubecore bar, titanium alloy, stainless steel, bearing steel, spring steel, alloy tool steel, carbon tool steel, high-speed tool steel, quality carbon steel, alloy structural steel, nonhardening and tempering steel, free-cutting steel, valve steel, gear steel, mold steel and all kinds of nonferrous metal, pipe etc.

Technical Parameters

Specification		WXC30S
RAW MATERIALS	Diameter Range(mm)	Φ6.5~Φ31
	Tensile Strength (M pa)	≤1000
	Surface Hardness	≤HB320
	Curvature(mm/m)	≤1.50
	Diameter Tolerance	According to GB 702-2004 second group
	Roundness(mm)	≤50% of the diameter tolerance
	Surface Roughness(Ra)	≤25~50μm
FINISHED GOODS	Diameter Range	Φ5.5~Φ30
	Unilateral Cutting Depth(mm)	0.20~1
	Diameter Tolerance	≤h9 (standard tolerance grade)
	Surface Roughness(Ra)	≤3.2μm
	Roundness(mm)	≤0.03mm
Feeding Cutting Speed(m/min)	1.0--12 (for continuous chips and high strength and hardness should reduce the speed)
Cutter Head Rotational Speed(rpm)	600~2000(Four Poles)
Main Machine Motor Power(KW)	45
Auxiliary Machine Motor Power(KW)	4(feeding part)+0.55(discharging part)
Main Machine Outline Dimensions (Length*Width*Height) m	2.5 x 2.2 x1.5 (for reference )
Full Set Machine Outline Dimensions (including auxiliary machine) (Length*Width*Height) m	12m X 2.2m X 1.5m
Main Machine Weight (including auxiliary weight) (T)	3.5 (6)
Total Capacity(KW)	71
Compressed Air Source (user prepare by themselves)	0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier

Company introduction Yantai Haige International Trading Co.,Ltd., is a joint-stock enterprise engaged in exporting niche mechanical equipments produced in China to the markets abroad, which is located in Laishan district, Yantai City, Shandong Province, China.
The company is based on the manufacturing plant---Yantai Haige machine tools Co.,Ltd whose area is more than 2000m².There are one hundred and forty staffs working in the factory.The factory is mainly engaged in producing and selling peeling machines(centerless lathes), straightening machines, polishing machines(abrasive belt machines), auxiliary machines and other processing and finishing equipment for steel(bright steel) for more than ten years.
Certification
Packaging & Shipping
FAQ 1.Are you manufacturer or trading company?
We are professional manufacturer and we have more than 10 years experience in this field.We have our own factory.
Besides,at the end of 2014,we was just estabilished a trading company.
2.How many employees are there in your factory?
Approximately 150 persons.
3.Do you have your own R&D team?How many design engineers do you have?
Yes,we have our own R&D team.More than 10 persons.
4.Which countries have your machines been exported to now?
Russia,South Korea,North KOrea,Pakistan,India,Vietnam,Taiwan,etc.
We regard our customer's satisfaction as our unremitting pursuit.

Contact Information:
Tony li,

---
