Basic Info.
Model NO.
shutter door roll forming machine
Product Type
Tile Forming Machine
Automatic Grade
Automatic
Screw Design
Double-Screw
Applicable Industries
Building Material Shops, Manufacturing Plant, Cons
Type
Tile Forming Machine
Voltage
380V, 50Hz, 3 Phrases
Key Selling Points
Easy to Operate
Video Outgoing-Inspection
Provided
Core Components
Pump, PLC
Feeding Thickness of Plate
0.3-0.8mm
Control Sysem
PLC Automatic Control
After-Sales Service Provided
Field Installation, Commissioning and Training
Rolling Thinckness
0.3-0.8mm
Transport Package
Wooden Frame
Specification
7500*1500*1600mm
Trademark
HUA YU XIN NUO, XINNUO
Origin
Buotou Hebei, China
Production Capacity
30 Set/Sets Per Month
Product Description

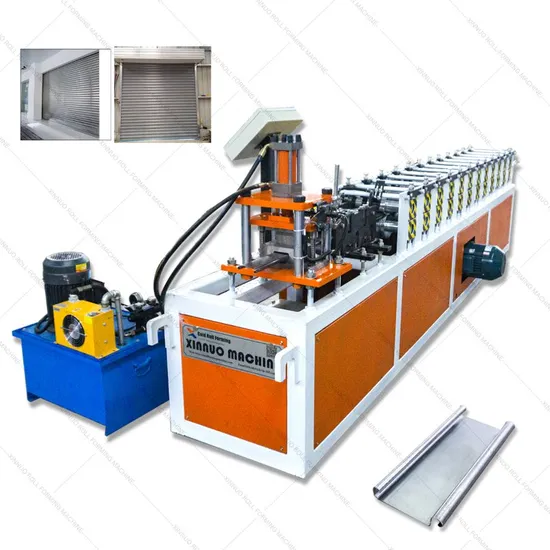

good quality Roller Shutter Slat Roll Forming Machine
↓↓↓↓↓click here to contact us ↓↓↓↓↓
Specification
Suitable to process
| Color steel plate, galvanized sheet, aluminum coils and etc.
|
Width of the feeding material
| 100-160mm
|
Roller station
| 10-15 rows
|
Thickness of feeding material
| 0.3-0.8mm
|
Power Supply
| 380V, 3-Phase,50Hz
|
Productivity
| 10-20m/min
|
Rollers' material
| 45# steel
|
Diameter of shaft
| 75mm
|
Roller Diameter
| 50mm
|
Wall thickness of main forming machine
| 14mm steel plate
|
Main forming machine body
| 300 mm H steel
|
Motor power
| 4+3kw
|
Cutter Standard
| GCr12
|
Size
| 7500*1500*1600mm
|
Weight
| About 3.5T
|
Custom
| According to customer's requirements
|
Packing & Delivery
↓↓↓↓↓click here to contact us ↓↓↓↓↓
Company Profile
buyer comments
FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK. 2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you. 3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998. 4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day. 5.How about the warranty:
12 months limits warranty.
If you want to contact us, you can make an inquiry. ↓↓↓↓↓click here to contact us ↓↓↓↓↓
>>
