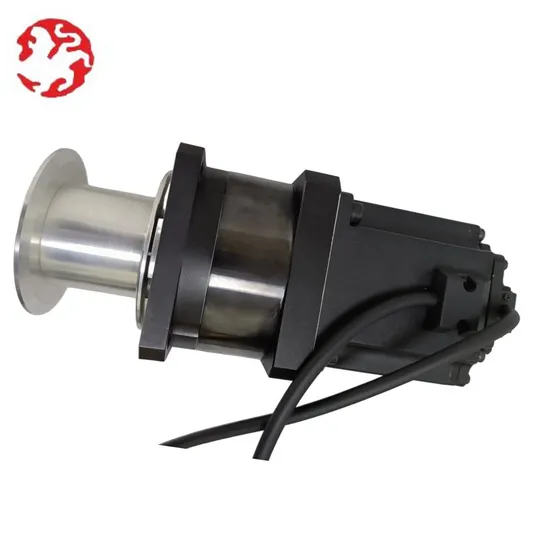

80# 750W 220V Servo Motor with Planetary Gearbox Without Brake (AC DC gear motor) Electric DC Motor Brushless Motor

Product Description

Product Type
1.Product tyep
80# 750W 220v servo motor with planetary gearbox without brake;Encoder can be choosed according to your requirements; High-end motor application fields cover industrial robots, AGVs, intelligent factories, CNC, and 3C, among others.
2.OEM&ODM are all acceptable
Our Advantages
3.Our advantages: 3.1Having an excellent R&D team, 3.2. RELIABILITY FIRST , QUALITY CONTROL MANAGEMENT FIRST.
3.3.SHORT LEAD TIME (Conventional products about one-week)
3.4 COST-EFFECTIVE (competitive price )
3.5 Certification:ISO9001, CE; and our products meet RoHS requirements.
3.6 With a one-year warranty (under normal use)
4.Product features
4.1. The entire series adopts a 5-pair pole scheme;
4.2. Compared to competitors in the same industry, the product size has a shorter advantage;
4.3. The rotor adopts embedded magnetic steel, without the risk of magnetic steel falling off;
4.4. Encoders can be matched with various types, and the company has its own encoder products for matching use
Compared to peers, it has supporting advantages.
4.5. The appearance of the motor is available in silver and black, with a focus on black.

Product Parameters
5.Technical indicators

Rated output power	750	W
Number of poles	10	P
rated voltage	220	VAC
Rated speed	3000	r/min
Maximum speed	5500	r/min
Rated torque	2.39	N.m
Peak torque	8.36	N.m
Line back EMF	38.6	V/krpm
Torque coefficient	0.639	N.m/A
Moment of inertia	1.59	Kg.sq.m.10-4
Line resistance	1.5	ohm
Line inductance	750W	mH
Reduction ratio	i=10

6.Functional features

Working hours	Continuous
Heat resistance	Class F
Body color	Black
Cooling method	Natural cooling
Vibration level	V15
Connection method	Direct connection
Installation method	Flange installation
Excitation method	Permanent magnet
Protection method	Fully enclosed ,self-cooling IP65 (except shaft penetration)
Rotation method	Counterclockwise rotation(CCW) as seen from the extension end of the motor shaft

Product Description
7.Outside view
8.Torque-speed characteristic curve
9.Model Explanation
10.Servo motor wiring definition
Company Profile
11.Company Profile
12.Development history
Detailed Photos
13.Motor overview
Certifications
14.Certificate patent display
FAQ
15.FAQ
Q1: What kind motors you can provide?
A1: For now, our main products include high-voltage servo motors, low-voltage servo motors, hollow frameless motors, servo electric cylinders, linear motors, DD motors, and reduction motors.
Q2: Is there a MOQ for your motors?
A2: No. We can accept one sample for you to test, and the price of sample production will vary by 10% to 30% depending on different styles and batch prices.
Q3: Could you send me a price list?
A3: For our standard products, we can provide you with a price range for your reference only. The price will also vary depending on the quantity of orders and trade terms. If you can share your detailed specifications and order quantity, we will see what quotation we can provide.
Q4: Are you motors reversible?
A4: Yes, servo motors are reversible. They are usually composed of controllers and encoders, which can accurately control position, velocity, and acceleration based on input signals. By changing the polarity of the input signal or the direction of the control signal, the servo motor can reverse the rotation direction, achieving both forward and reverse rotation
Q5: Is it possible for you to develop new motors if we provide the tooling cost?
A5: sure. Please provide detailed requirements such as performance, size, annual quantity, target price, etc. Then we will conduct an evaluation to see if it can be arranged.
Q6:How about your delivery time?
A6: For standard motors, the sample delivery time is 7-14 days, and the batch delivery time is approximately 15-20 days, depending on the order quantity.
For customized motors, the sample delivery time is about 15-30 days; The mass production time is 30-45 days.
Please contact us for final reference.
Q7:What's your warranty terms?
A6: One year
Payments
1) We can accept EXW, FOB
2) Payment must be made before shipment.
3) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.
Shipping
1) We only ship to your confirmed address. Please make sure your shipping address is correct before purchase.
2) Most orders will be shipped out within 3-7 working days upon payment confirmation.
3) Shipping normally takes 7-25 working days. Most of the items will delivery in 2 weeks, while there will be a delay for something we cannot control (such as the bad weather). If it happens, just contact us, we will help you check and resolve any problem.
4) Please check the package upon receipt, if there are some damages, please contact us immediately.
Feedback & Refund
1) Feedback is important to us, if you have any problem with our products, please contact us, our technician will give you useful advises.
2) When you have the parcel and not satisfied with the goods or it is other problem, please tell us immediately, and provide us a photo showing the detail.
3) Any reason requiring for all refund. Items must be in original condition and no physical damage. Buyer responsible for all shipping cost.
If you need more information, please contact with us. We will attach great importance to your any problems.Hope we could establish a long-term effective cooperation.

---
